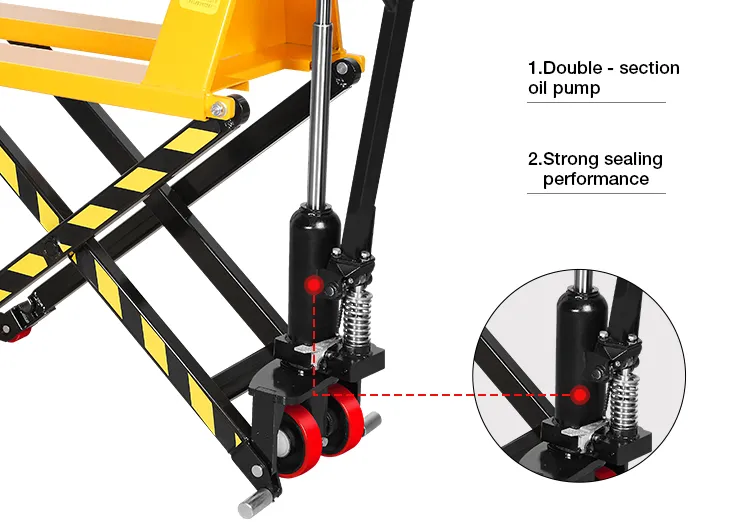

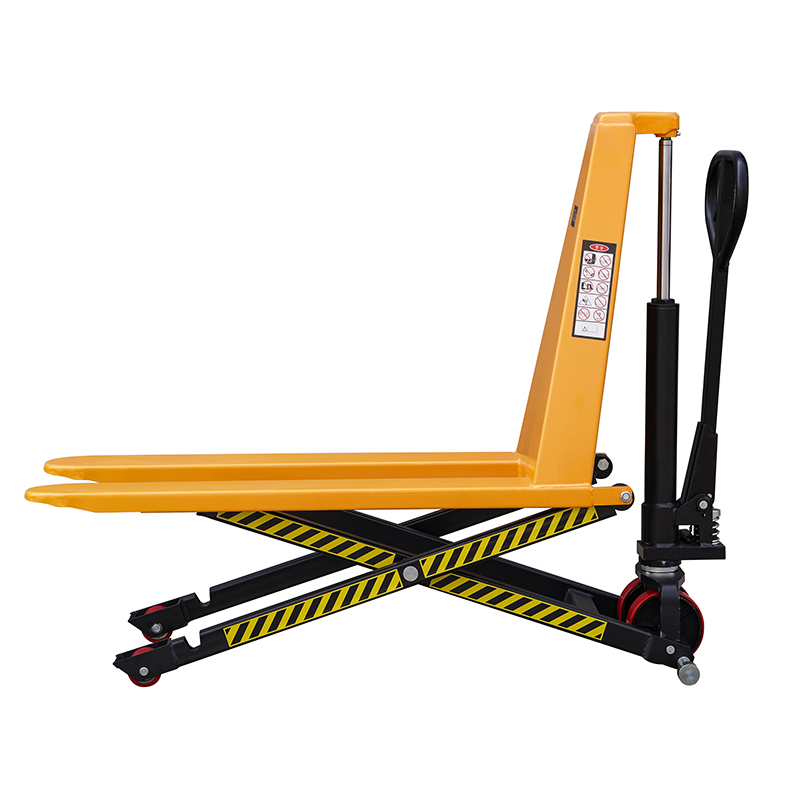

High-quality dual-stage hydraulic pump with strong sealing, no sticking, reduces maintenance frequency, and extends overall service life.

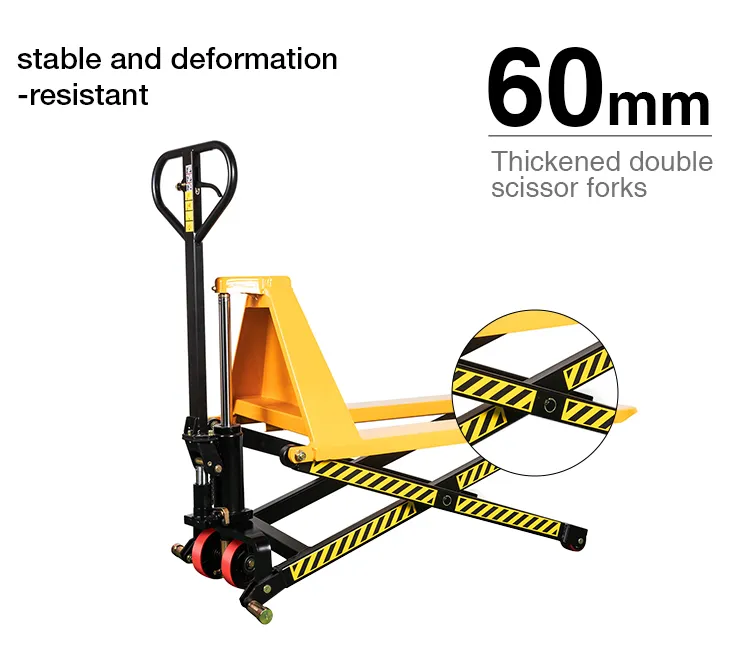

60mm thickened double scissor design offers excellent resistance to bending and compression, ensures smooth lifting, and resists deformation over long-term use.

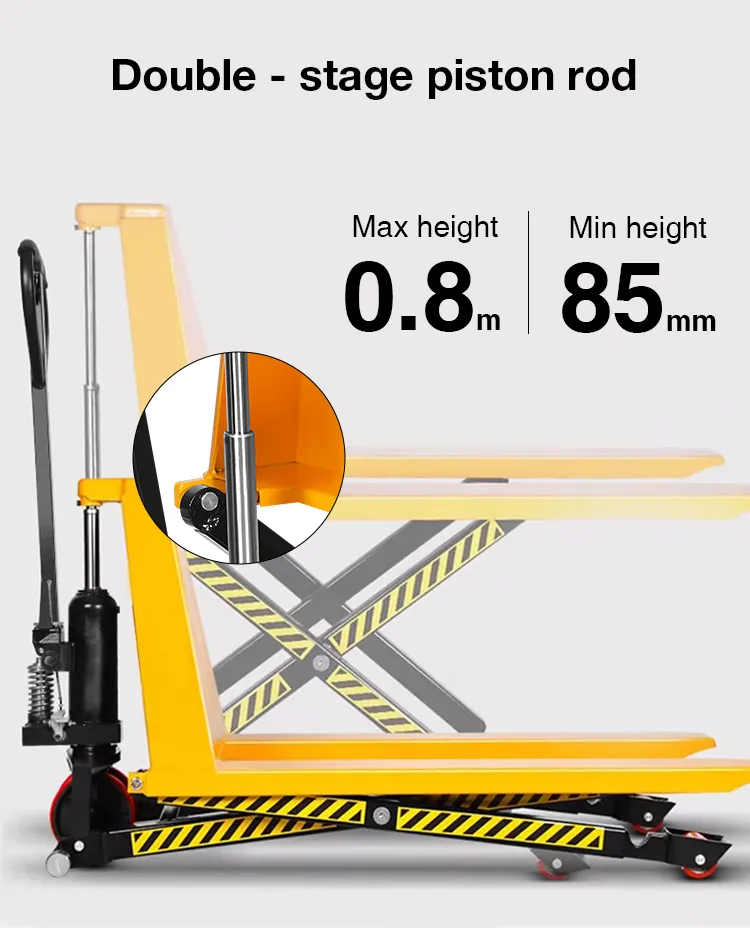

Equipped with dual-stage piston rods, enabling faster lift speed and higher lift height, suitable for different working heights; transport and operation in one step.
Emergency power-off and anti-misoperation lock ensure every start and stop is safe and reliable, protecting operator safety.
| Model | GBC10 | GBC15 |
|---|---|---|
| Load Capacity (kg) | 1000 | 1500 |
| Fork Length (mm) | 1150 | 1150 |
| Fork Width (mm) | 160 | 160 |

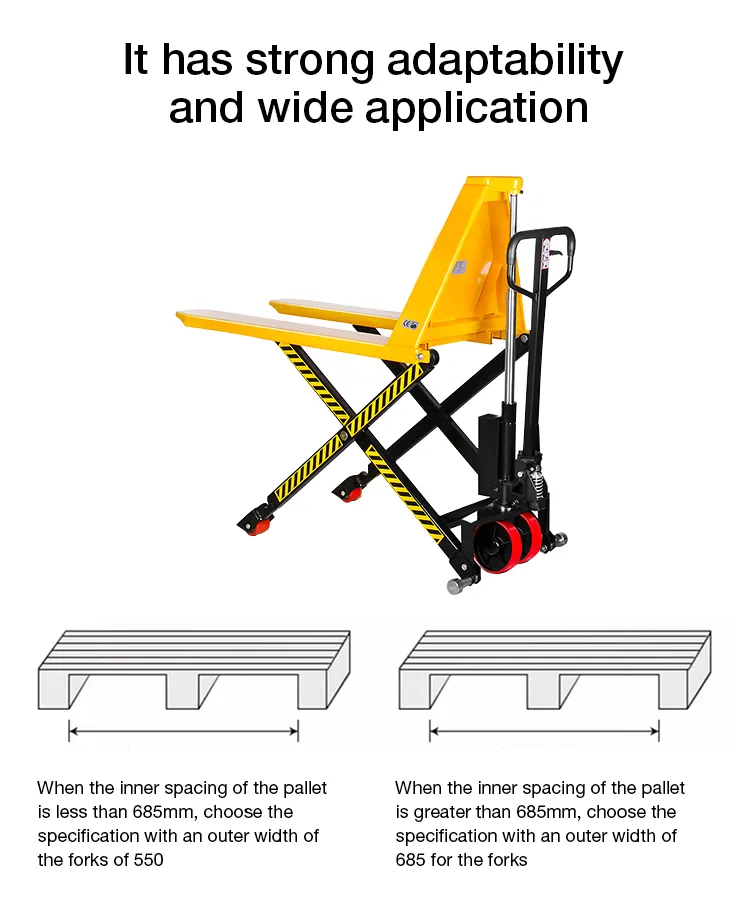

| Outside Fork Width (mm) | 550 / 685 | 550 / 685 |
| Lifting Height (mm) | 800 / 1000 / 1200 | 800 / 1000 / 1200 |
| Wheel Type | Polyurethane | Polyurethane |
| Overall Height (mm) | 1220–1300 | 1220–1300 |
| Weight (kg) | 120 | 140 |
