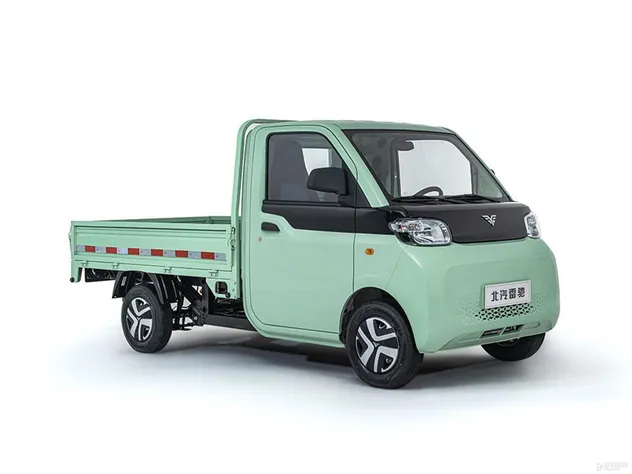

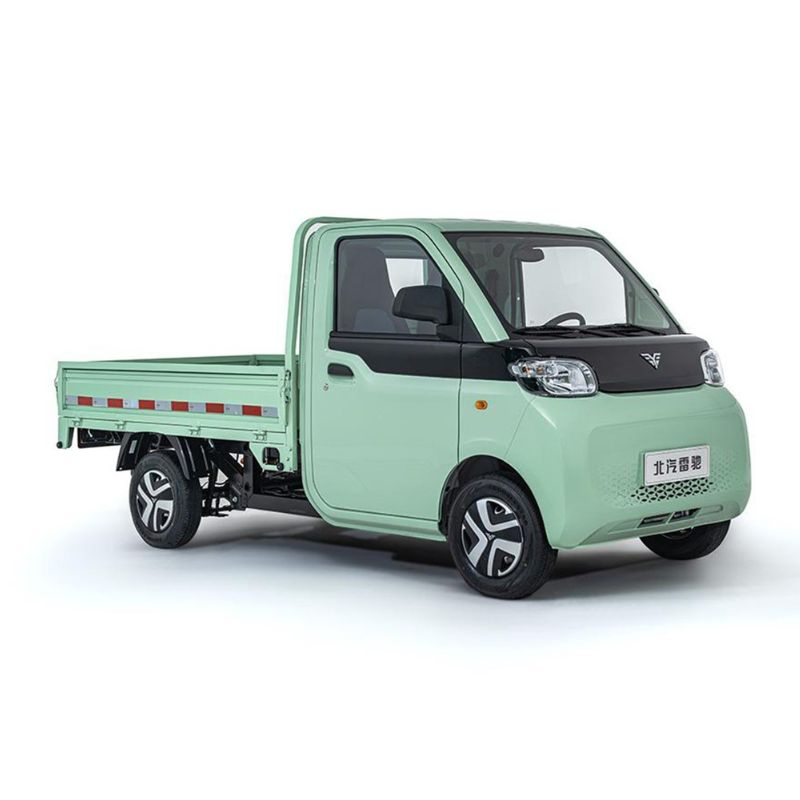

Light Cargo Delivery Urban Logistics Car Electric Mini Micro Truck

1 / 5

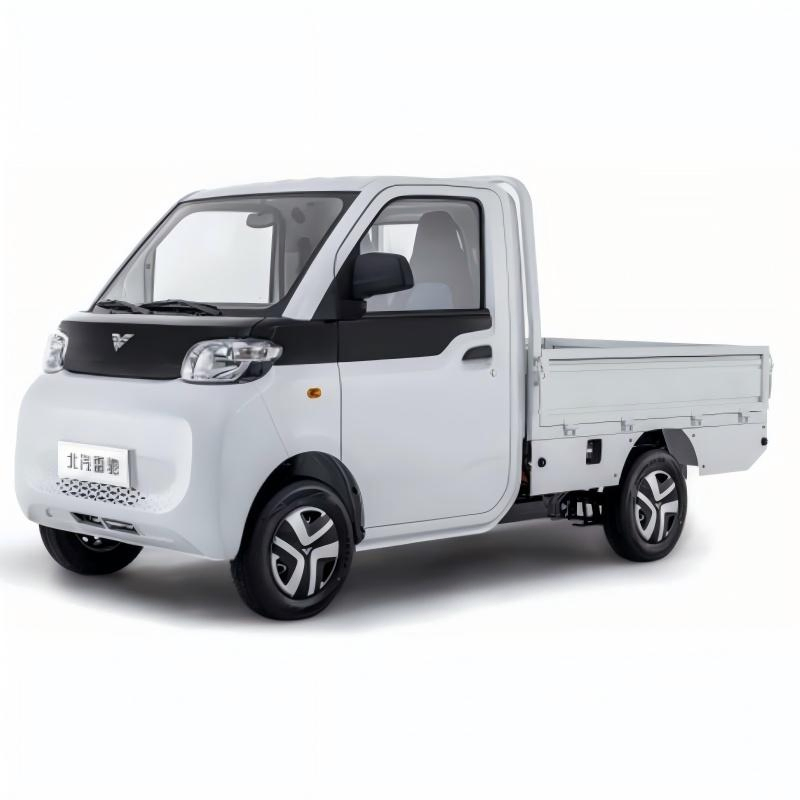

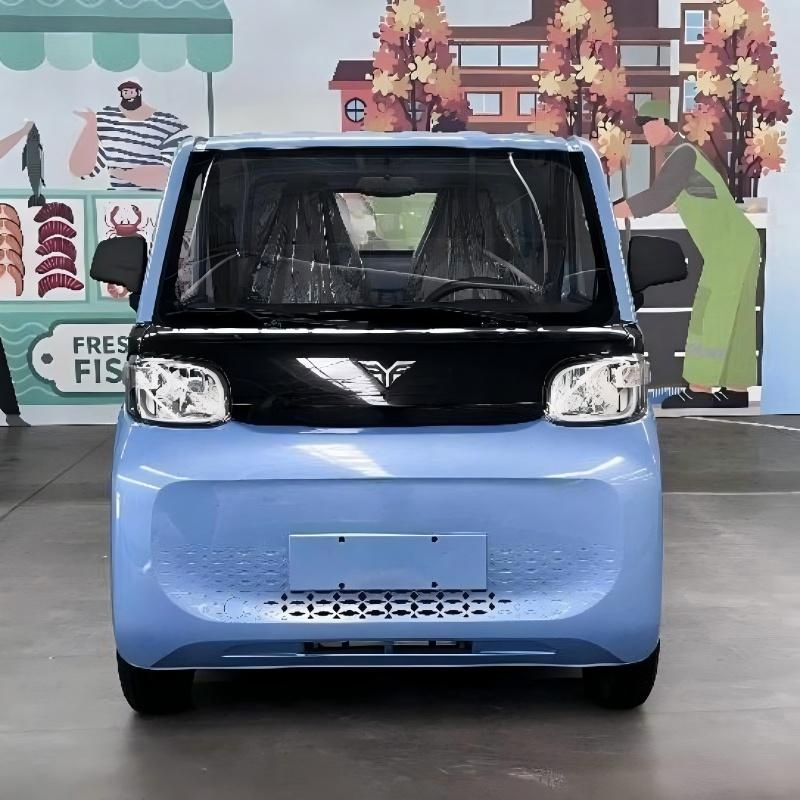

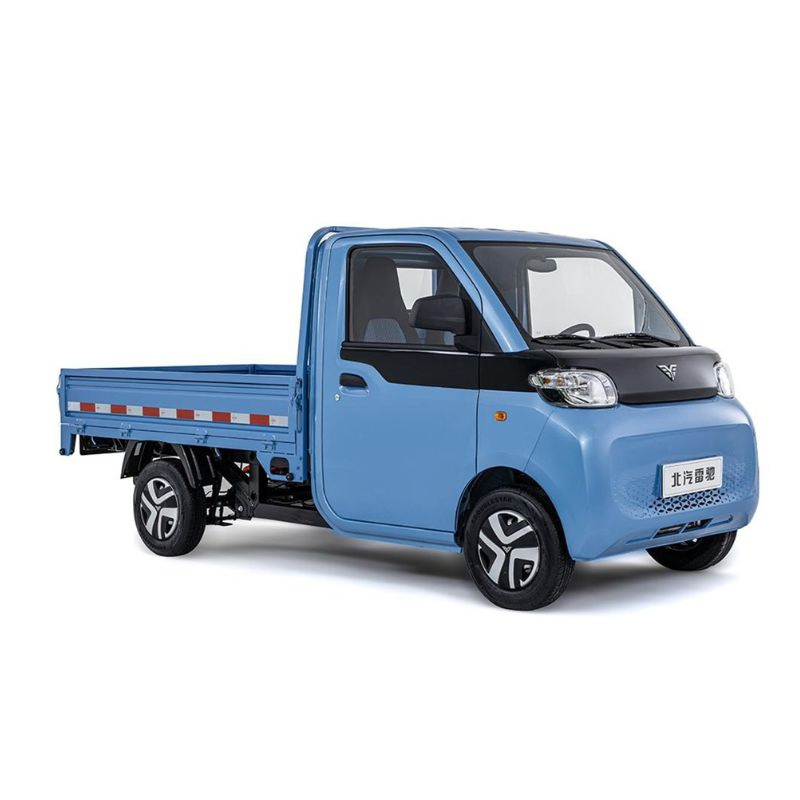

Light Cargo Delivery Urban Logistics Car Electric Mini Micro Truck

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:TC101-3

Transmission:Automatic

Emission:Zero Emission

Load Capacity:1-10t (Rated 720kg)

Power:Electric Energy

Drive Wheel:4×2

Seats:≤5 (2 Seats)

Condition:New

Specification:3820*1480*1680 mm

Origin:China

Product Description

★

Main Scenarios: Urban logistics, express light cargo delivery, supermarket replenishment (daily mileage <150km).

★

Individual Merchants: Hardware, building materials, fruits, vegetables, and fresh cargo transportation.

★

Cost Reduction: Property maintenance vehicles and short barge transport in industrial parks.

Key Features & Design

✔

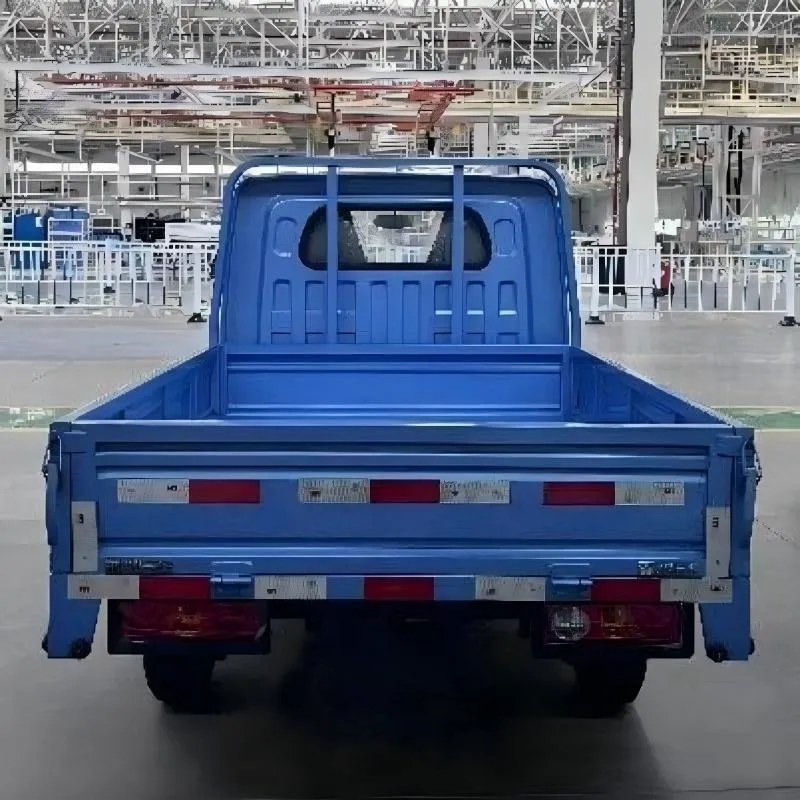

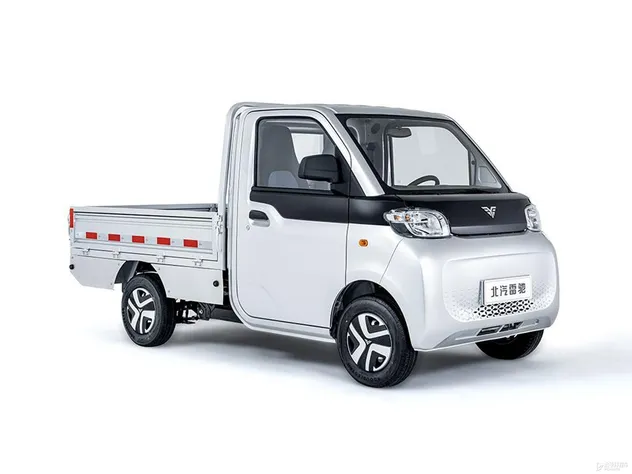

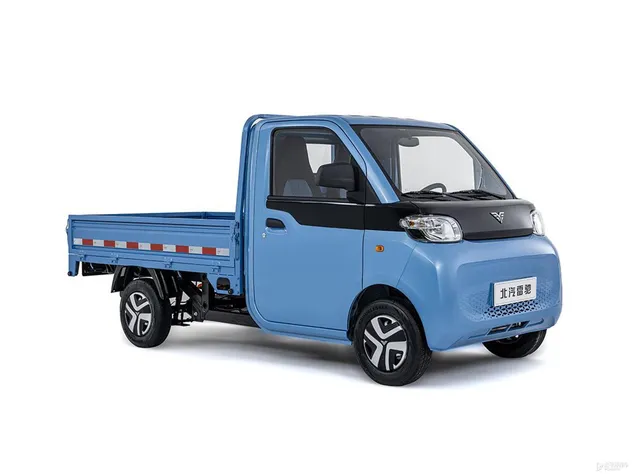

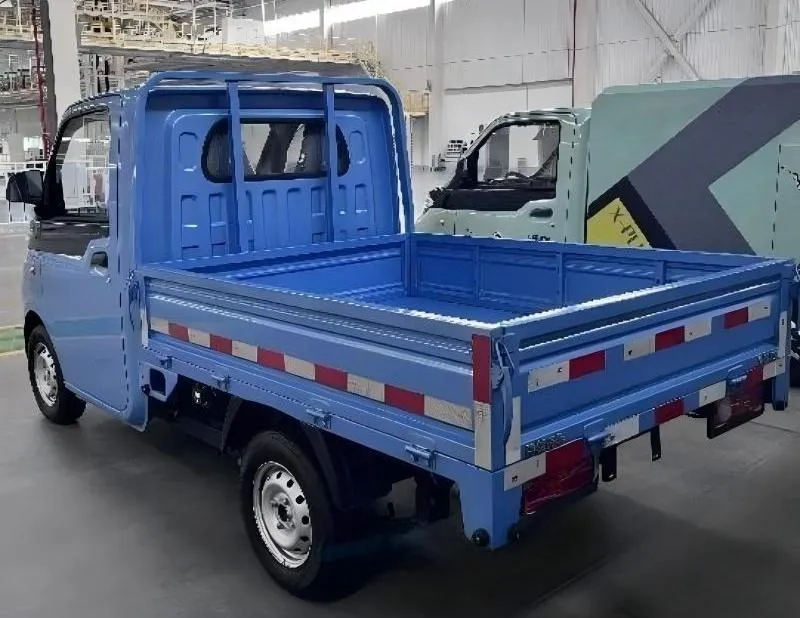

Practical Cargo Design: Large flatbed cargo box (2.8m³), rated for 720kg load. Includes side doors for easy loading.

✔

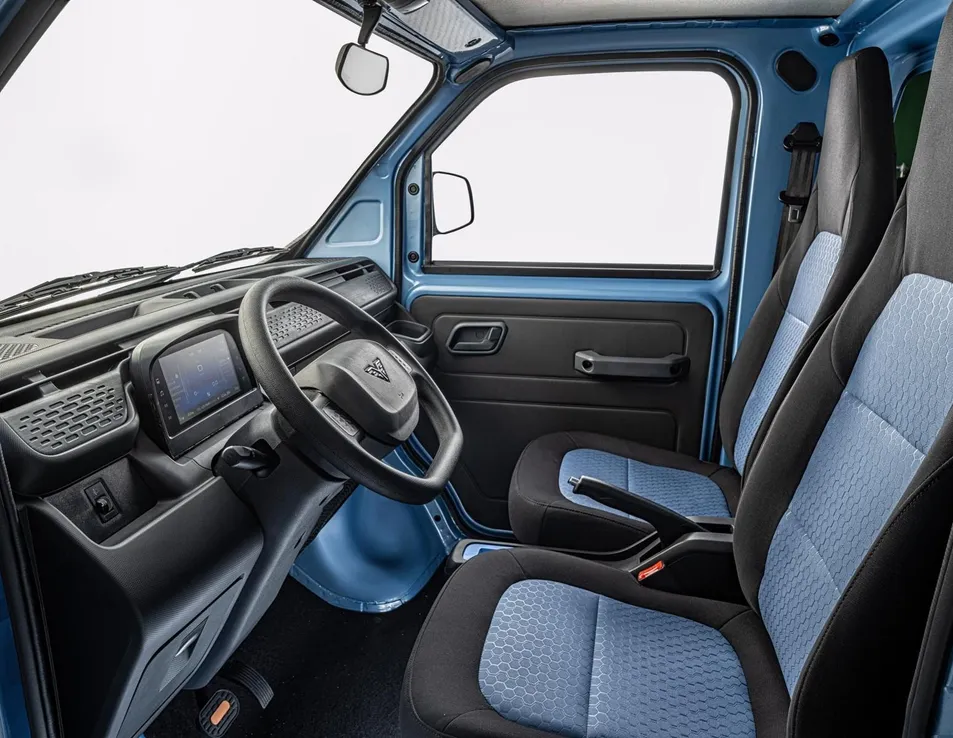

Driving Friendliness: Electric power steering, small turning radius, and front/rear adjustable seats.

✔

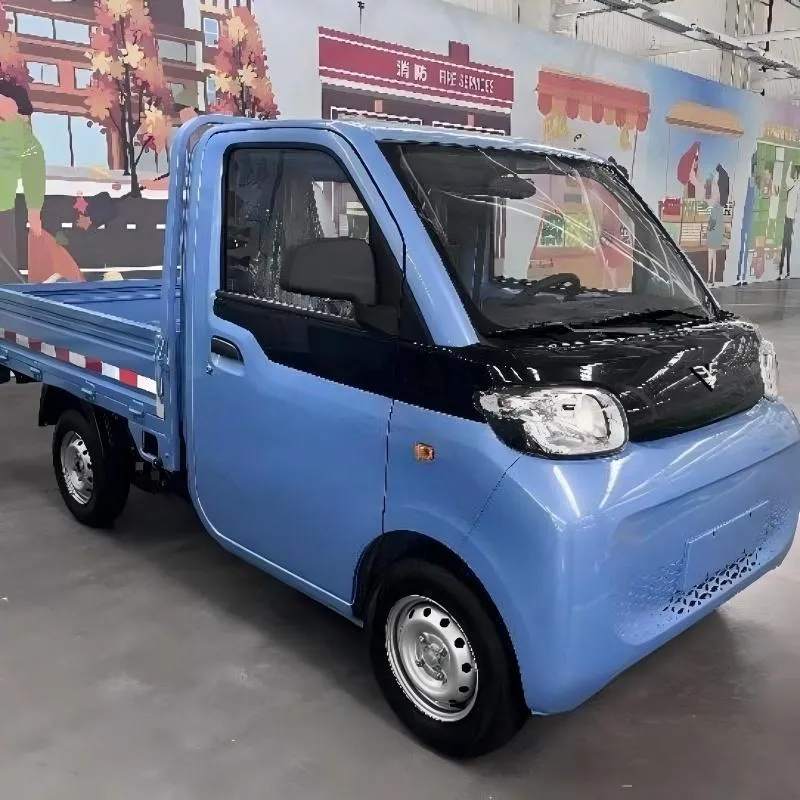

Reliable Power: 15.4kwh Lithium Iron Phosphate battery with CLTC range ≥150km. 30KW peak power motor.

✔

Safety Standards: Standard ABS + EBD, front disc brakes, and high ground clearance (160mm) for various road conditions.

Technical Specifications

General Parameters
Cabin Type	Single Cab
Cargo Box Type	Flat Bed
Wheelbase	2630 mm
Curb Weight	850 kg
Rated Load	720 kg
Total GVW	1700 kg
Dimensions (LxWxH)	3820 x 1480 x 1680 mm
Cargo Box Size	2015 x 1400 x 320 mm
Max Speed	≥71 km/h

Battery & Motor
Battery Type	Lithium Iron Phosphate (LFP)
Battery Capacity	15.4 kWh
Max Torque	110 N.m
Rated / Peak Power	15 kW / 30 kW
Driving Range (CLTC)	≥150 km
Charging Time	Slow Charging 8~10h

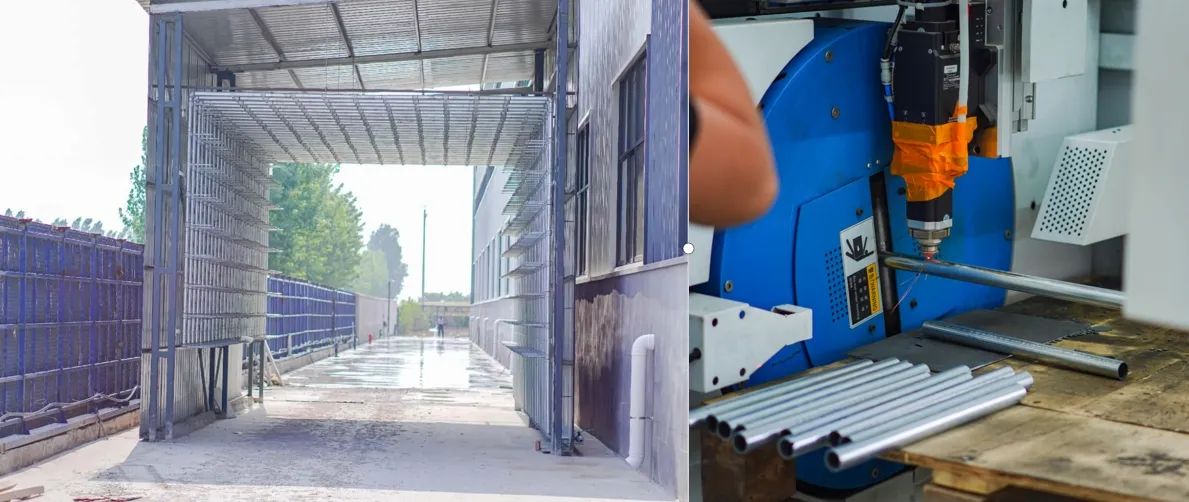

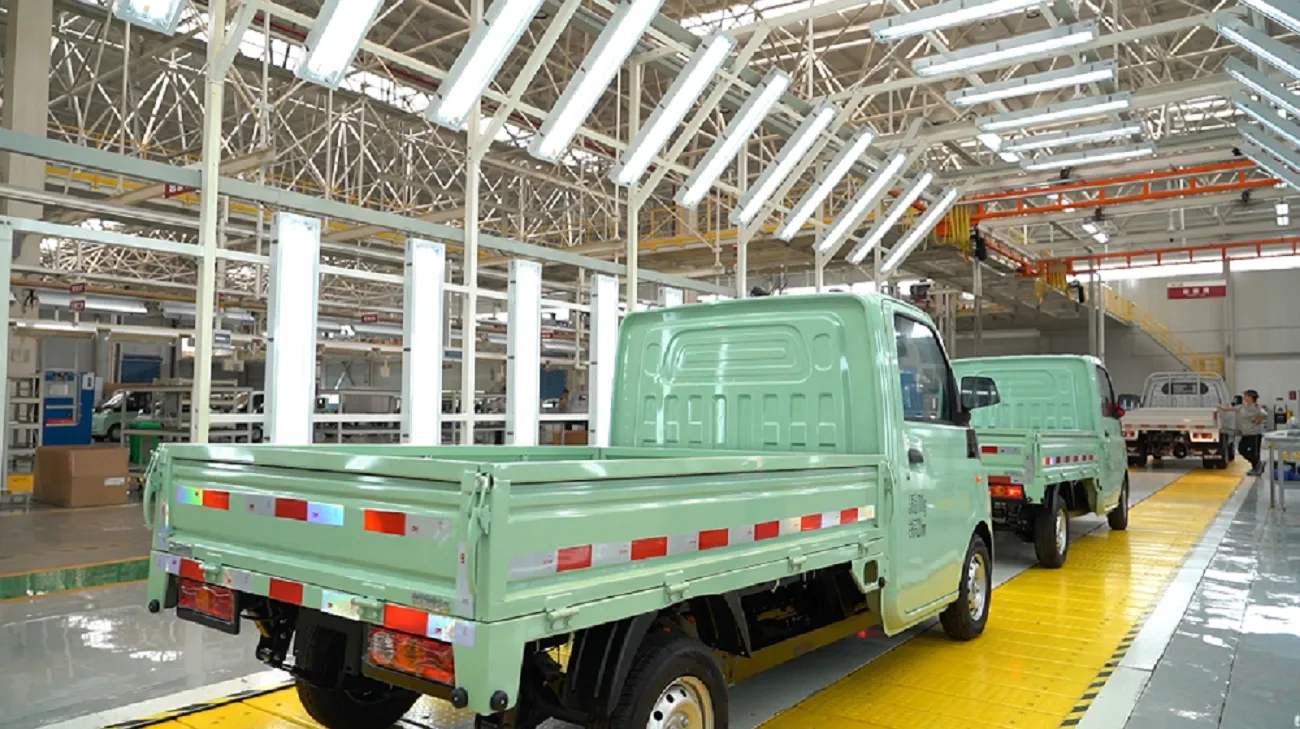

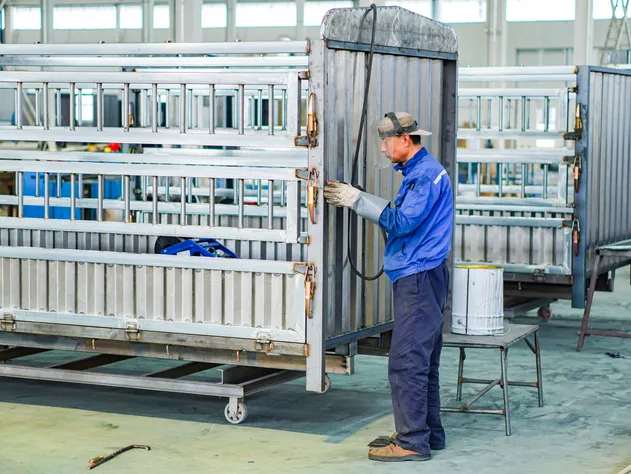

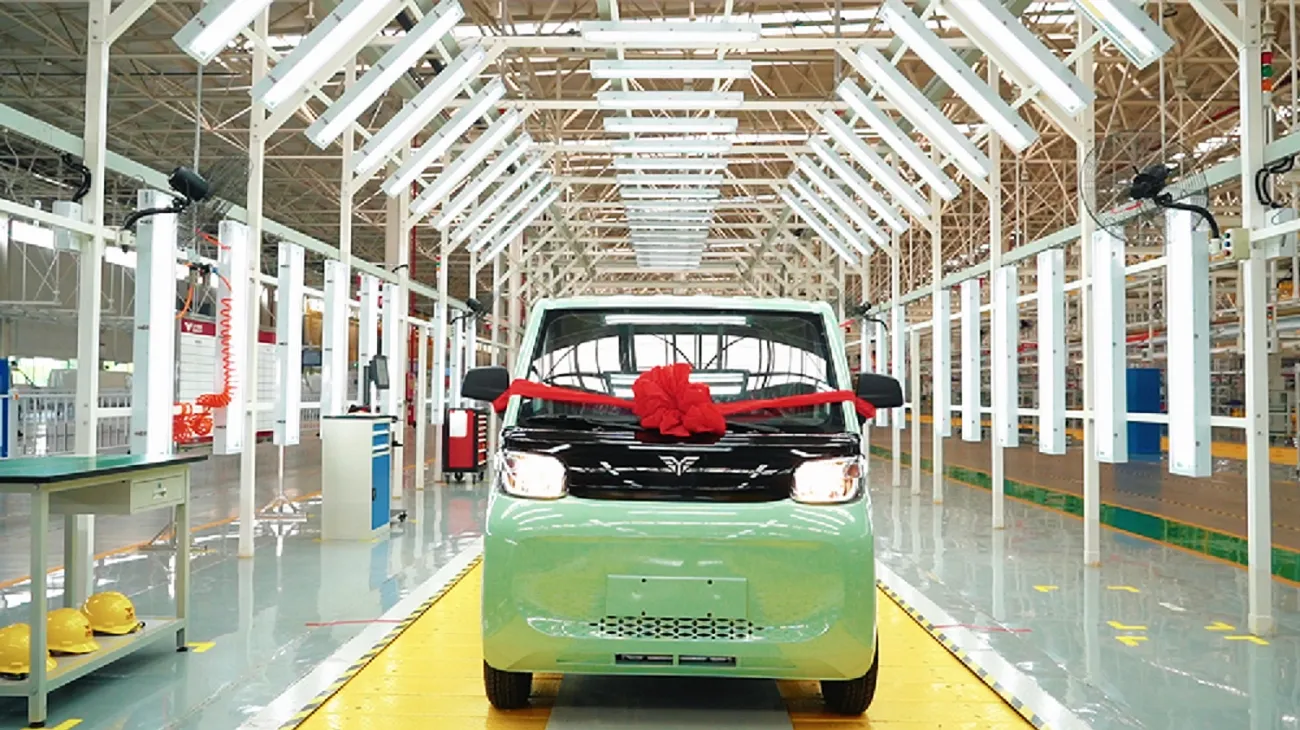

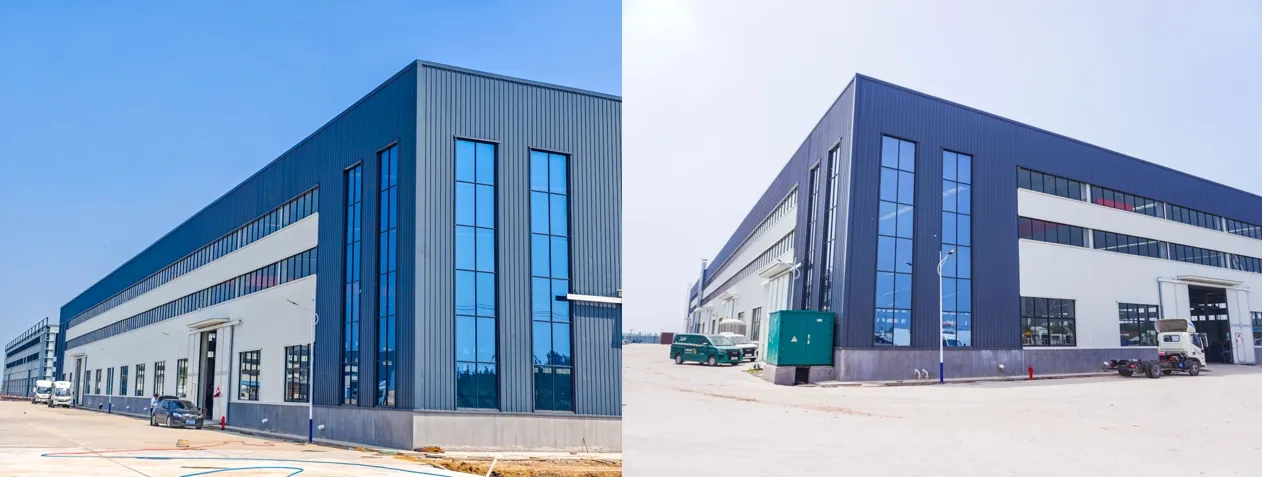

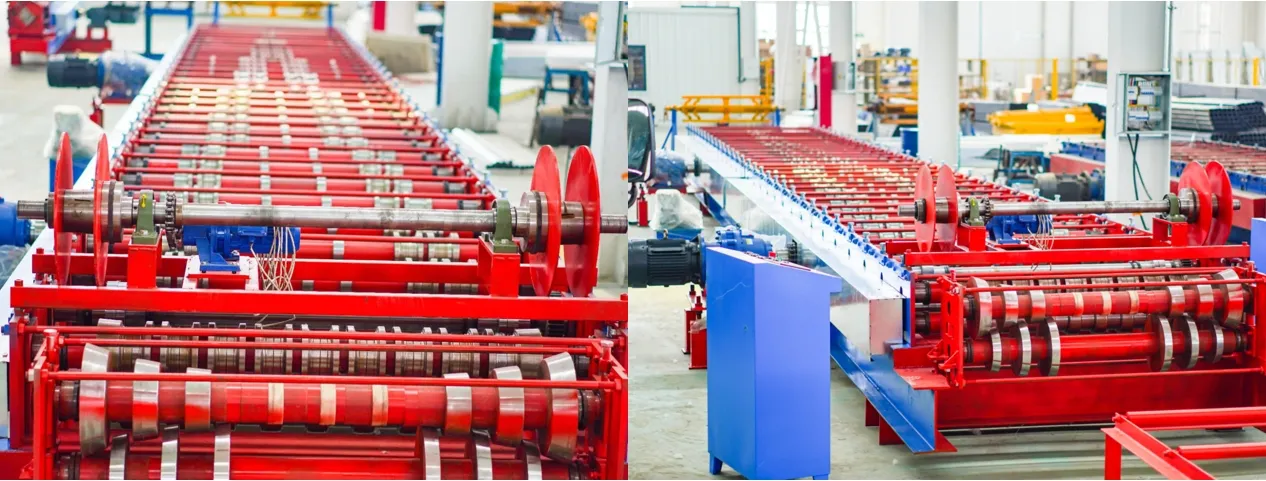

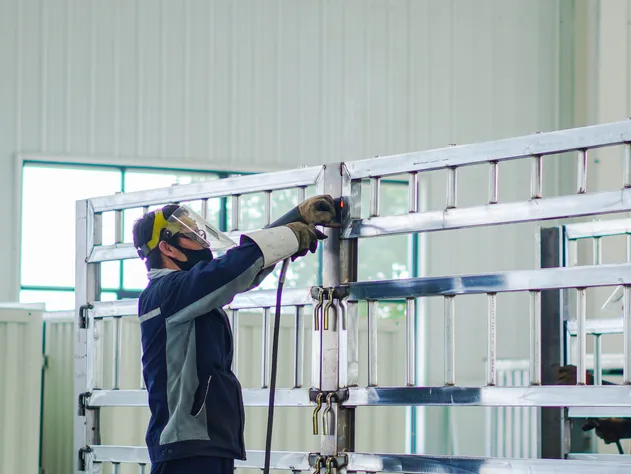

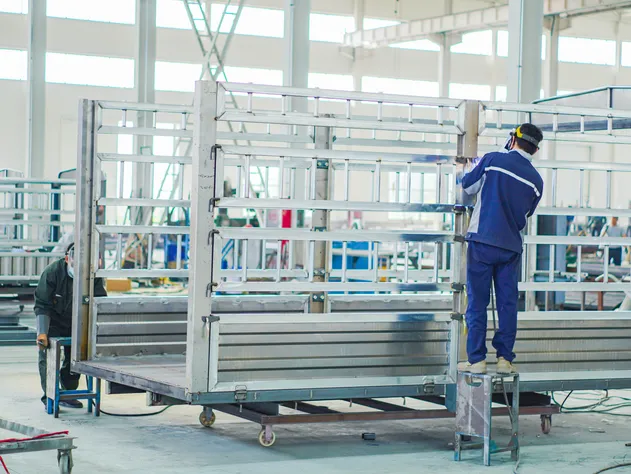

Our Factory

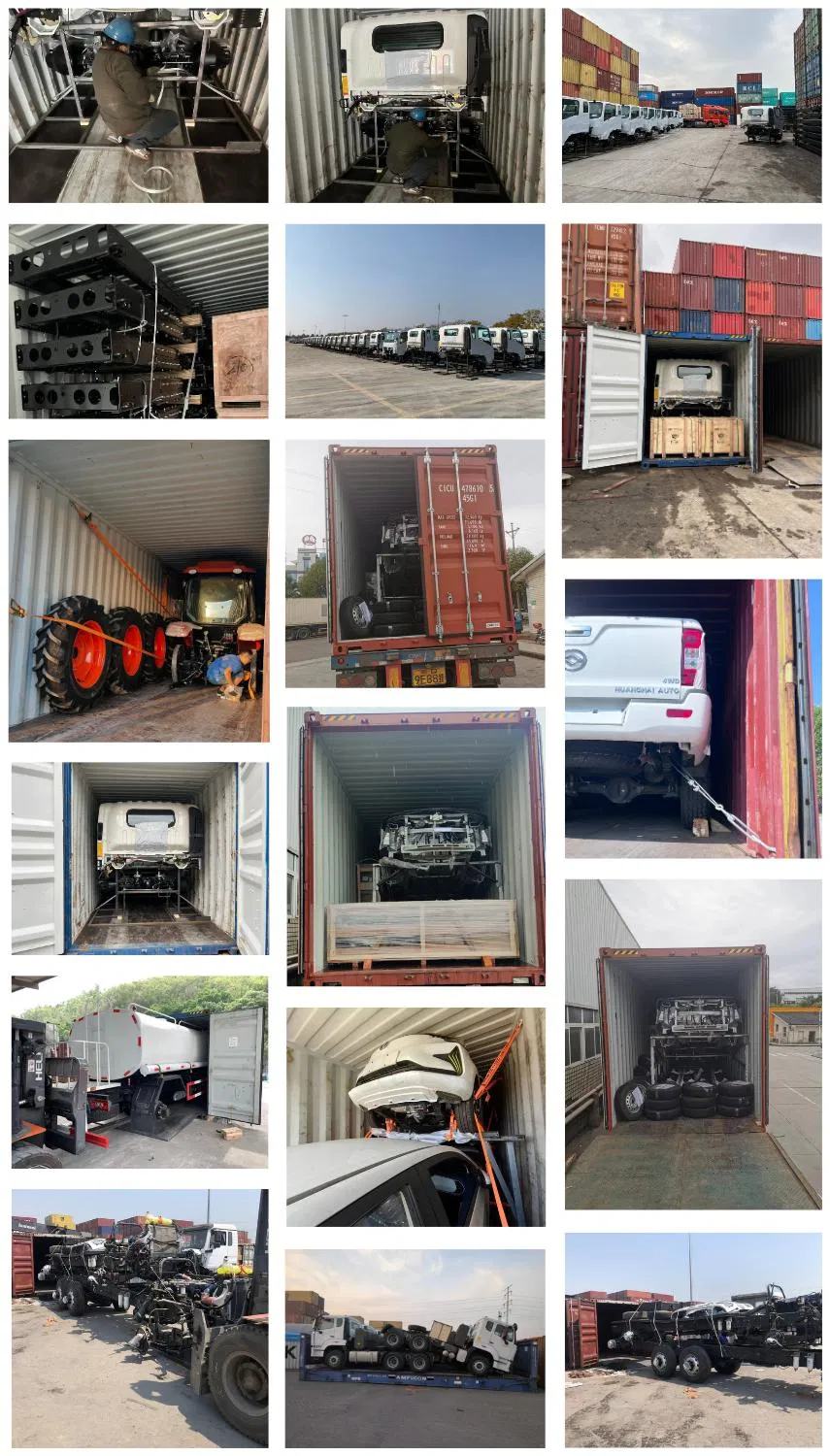

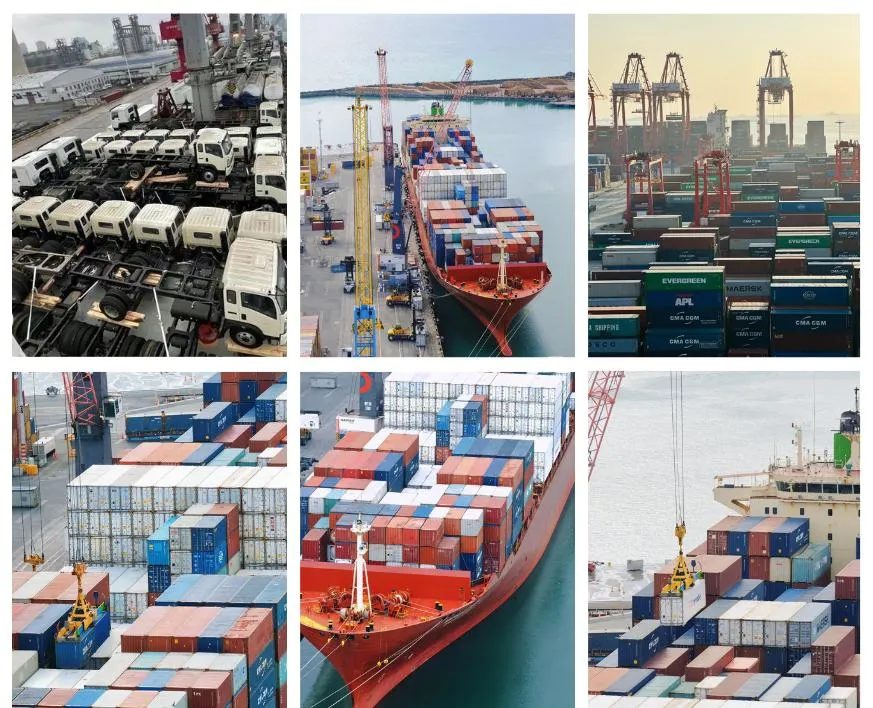

Packaging & Shipping

Frequently Asked Questions

What is the driving range of this electric mini truck?

The TC101-3 has a CLTC cruising range of ≥150km, which is ideal for urban short-distance delivery and logistics.

How long does it take to fully charge the battery?

It uses a standard slow charging system, which takes approximately 8 to 10 hours for a full charge, perfect for overnight replenishment.

What is the maximum load capacity?

The vehicle is designed for light cargo with a rated load capacity of 720kg and a total gross vehicle weight (GVW) of 1700kg.

What safety features are included?

Safety is a priority; the truck comes standard with ABS (Anti-lock Braking System), EBD (Electronic Brakeforce Distribution), front disc brakes, and high-level brake lights.

Can I install air conditioning in this vehicle?

Warm air conditioning is standard. Cold air conditioning is available as an optional upgrade to meet your comfort requirements.

What are the cargo box dimensions?

The flatbed cargo box measures 2015mm in length, 1400mm in width, and 320mm in height, offering a volume of approximately 2.8m³.
