| Model NO. | SS-SP001 | Type | Spray Booth |
|---|---|---|---|
| Certification | CCC, CE | Substrate | Steel |
| Coating | Powder Coating | Airflow Direction | Fully Undershot-type |
| Heating Mode | Diesel | Paint Mist Treatment | Dry-type |
| Condition | New | Voltage | 380~400/Customizable |

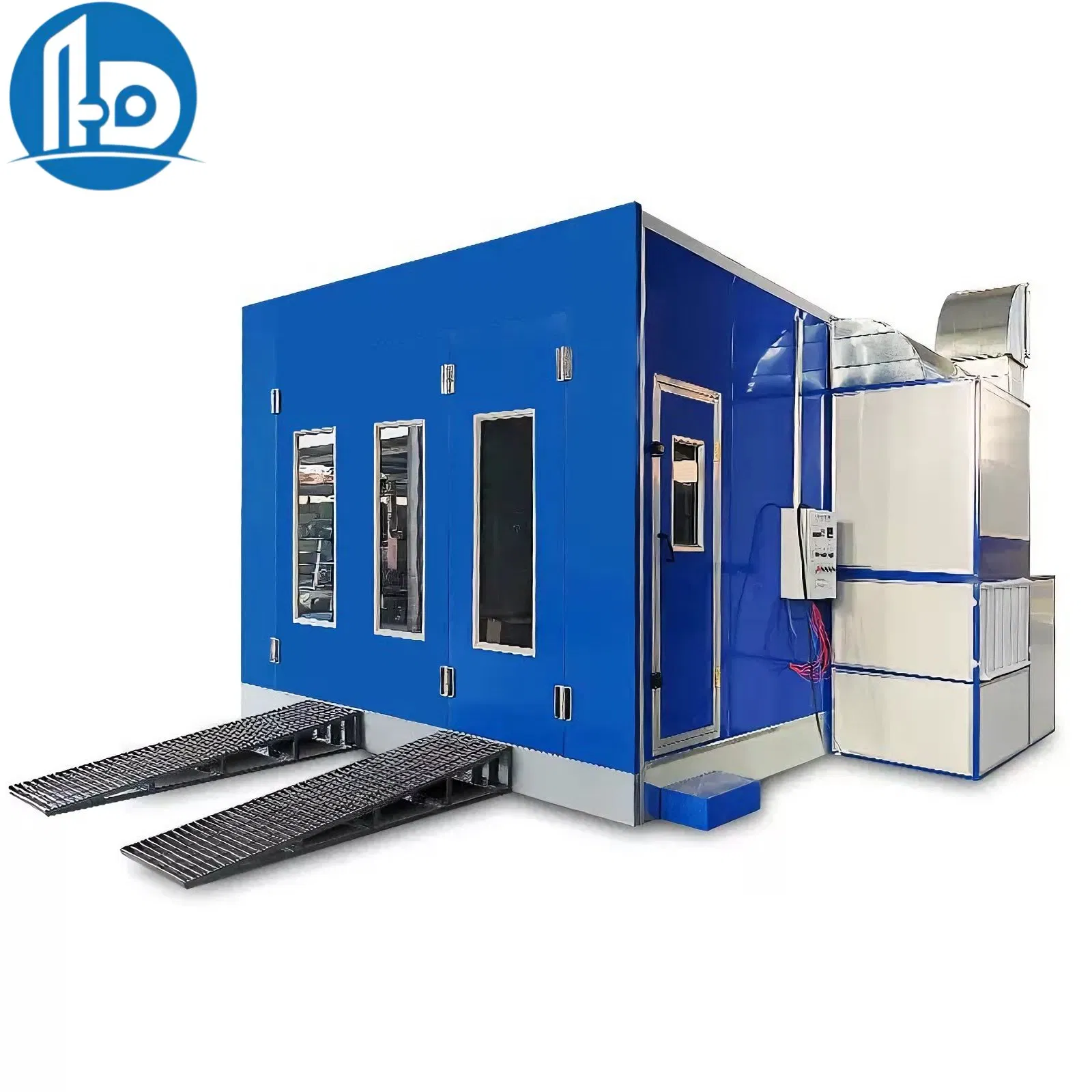

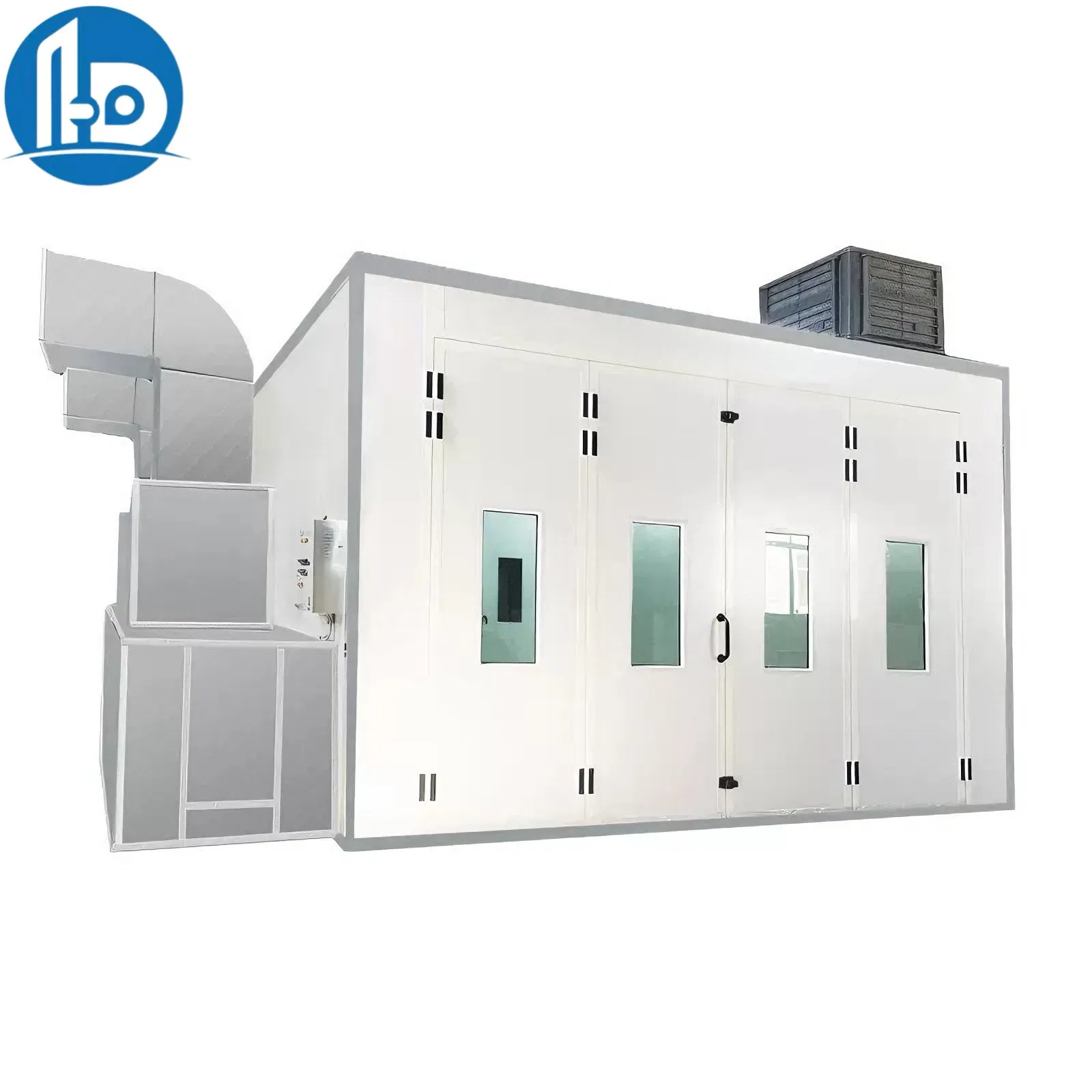

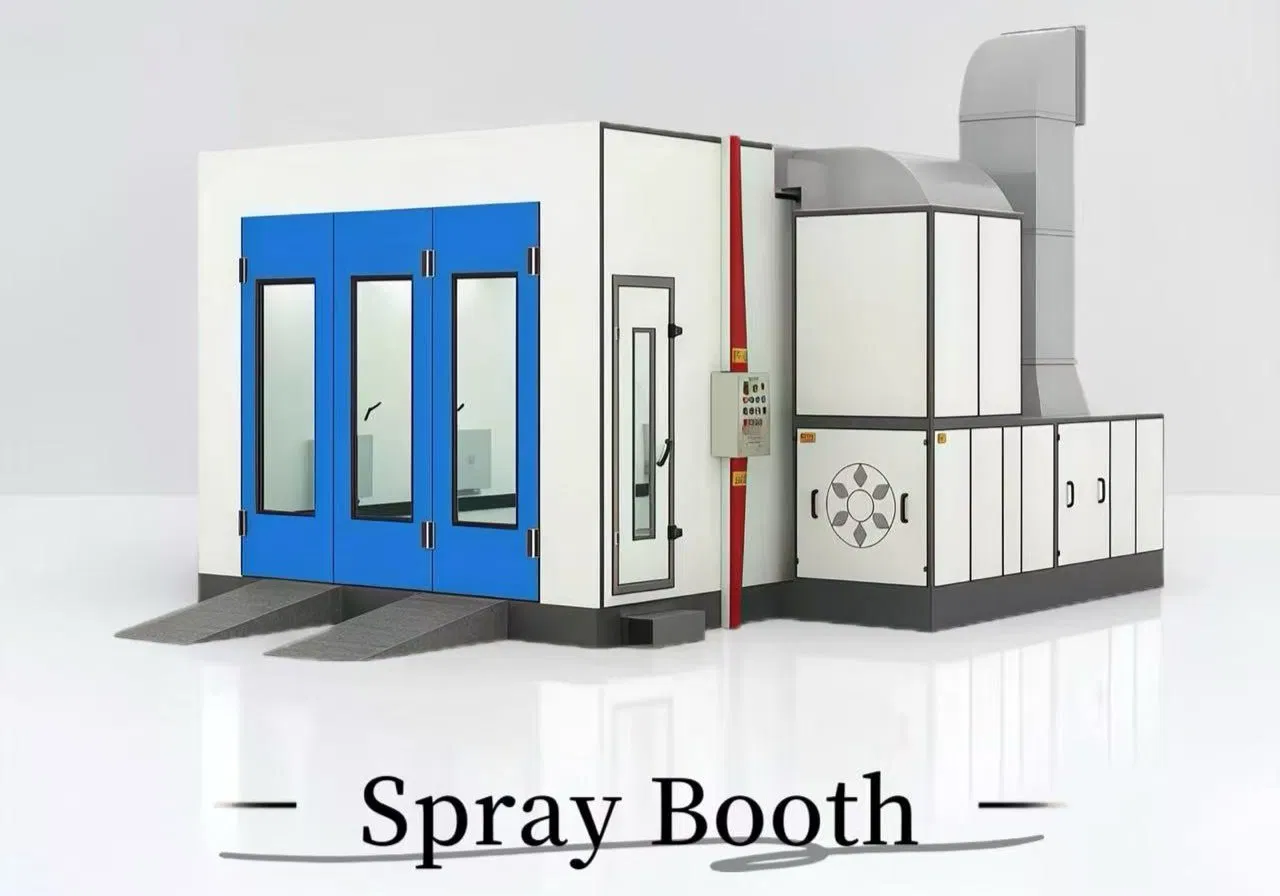

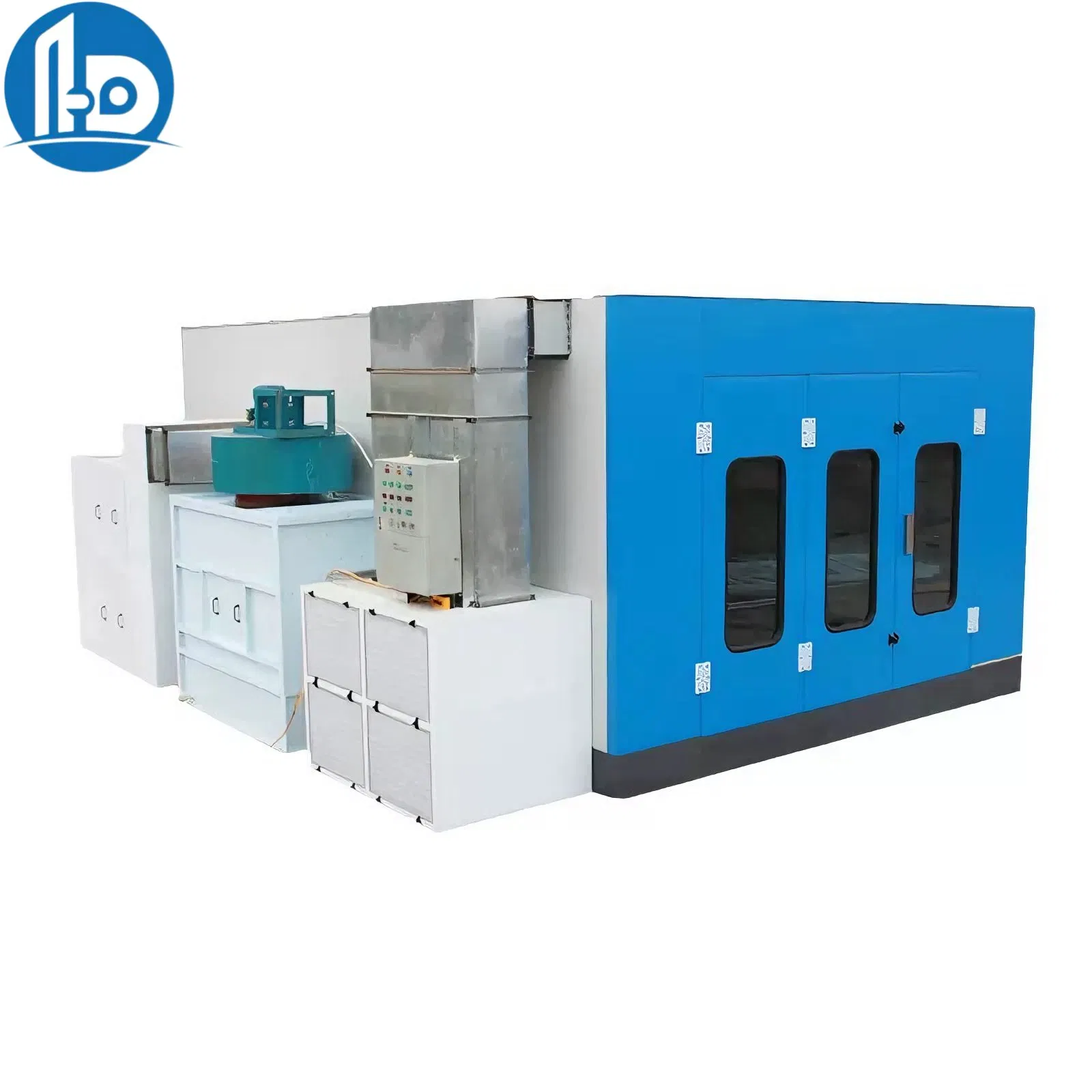

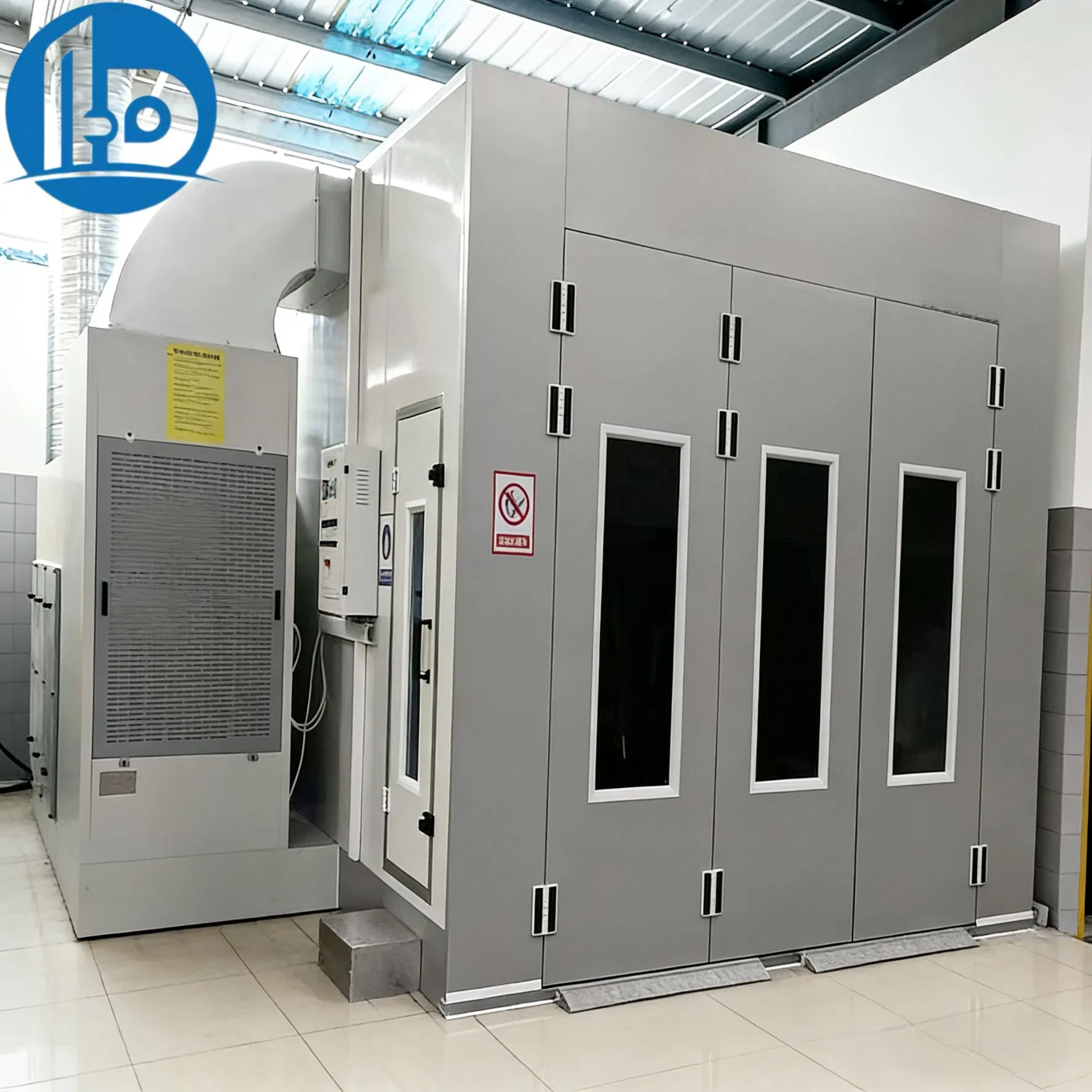

Industrial Spray Booth
Designed to provide high-efficiency spray painting, powder coating, and surface treatment solutions for various industries. Whether for automotive, furniture, metal, or other industrial applications, these spray booths are engineered to ensure safe, clean, and effective work environments. The booth features excellent air filtration, ventilation, and dust removal systems to ensure high-quality finishes and compliance with environmental standards.
The booth is customizable in size and design, equipped with efficient exhaust systems, airflow management, and LED lighting for optimal visibility during operations. Easy to install and maintain, this spray booth is the perfect choice for both small and large-scale operations.

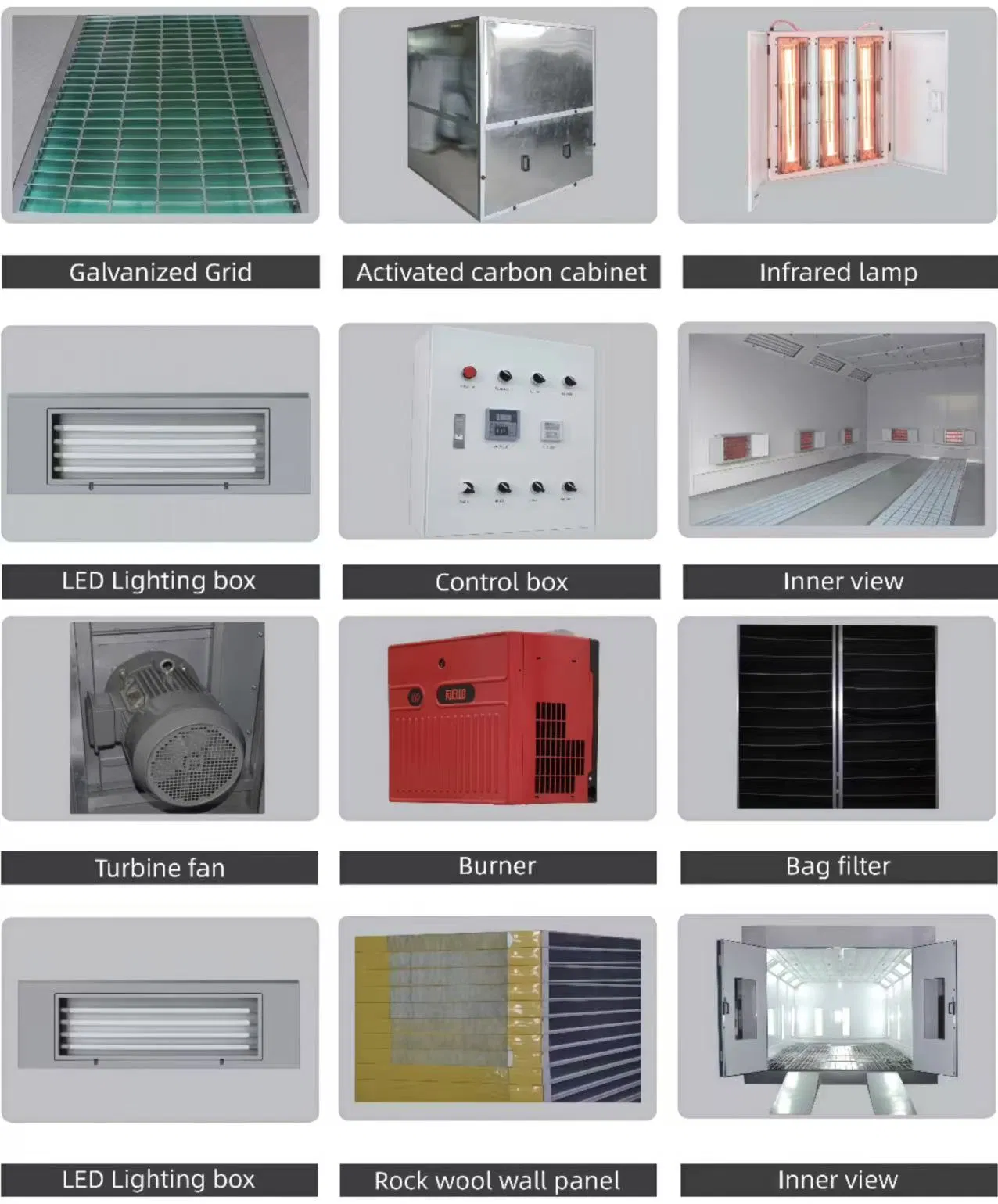

| Category | Sub-item | Specifications |
|---|---|---|
| Base | Ground Layout | Grating made of 30×4 mm flat steel and 10 mm threaded steel, galvanized. Load: 600 kg/wheel. Built-in pneumatic ramp. |
| Cover plate | Bent galvanized steel plate, 300 mm high. | |
| Support frame | 40×80 mm galvanized square steel tubing. | |
| Ground filter | Fiberglass filter, grade G3 (EN779), model PA-50, area: 26.91 m². | |

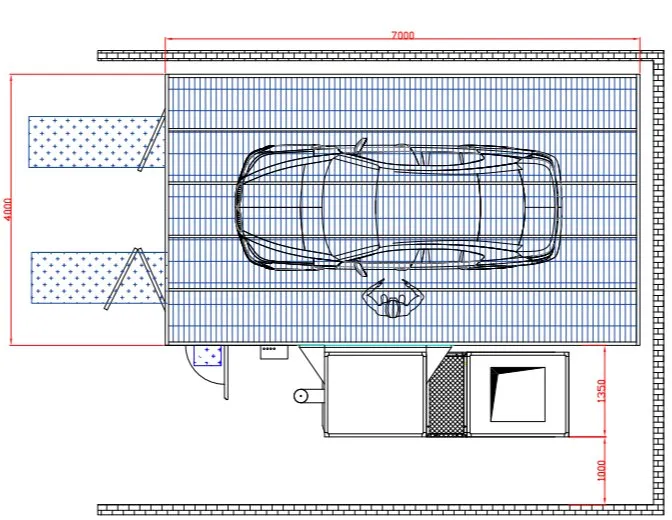

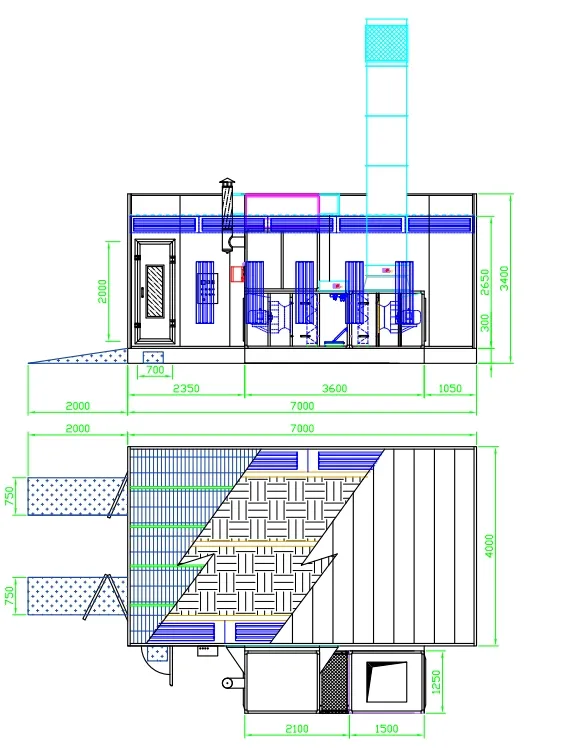

| Main Body | Internal Dimensions | 6900 × 3900 × 2650 mm (L × W × H) |

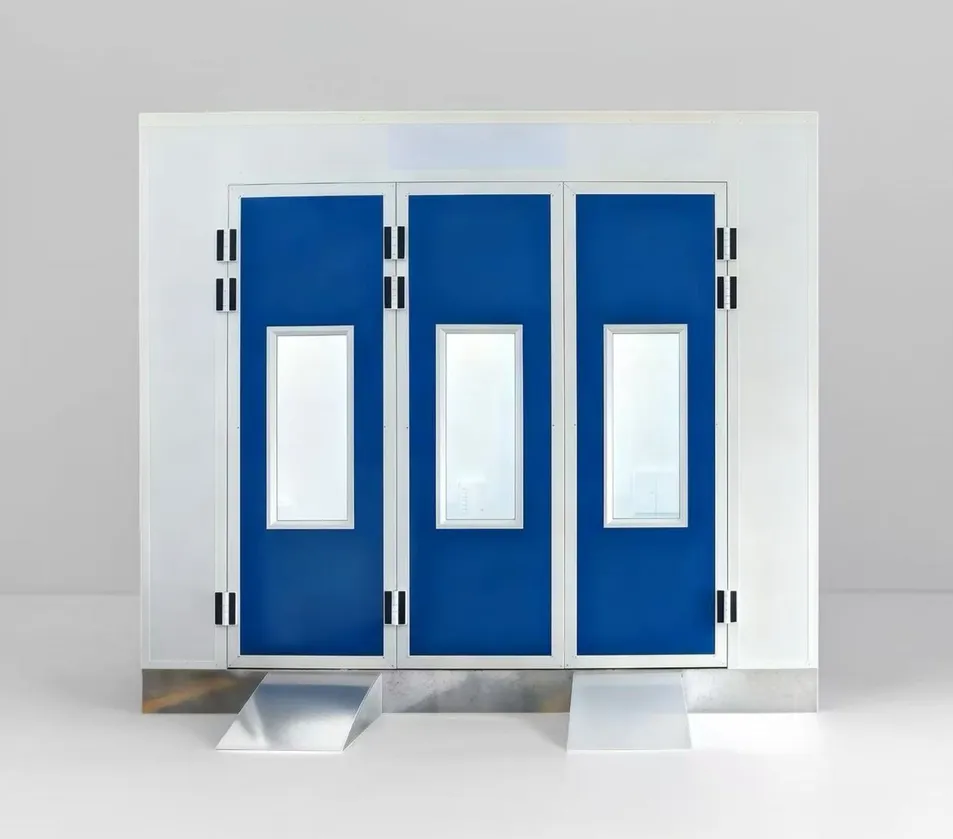

| Main Entrance | Three-panel folding door, 3000 × 2600 mm, with tempered glass. | |
| Wall Panels | 50 mm thickness, EPS insulation, 0.426 mm color-coated steel plates. | |
| Roof Panels | 0.6 mm thick galvanized steel sheet. | |

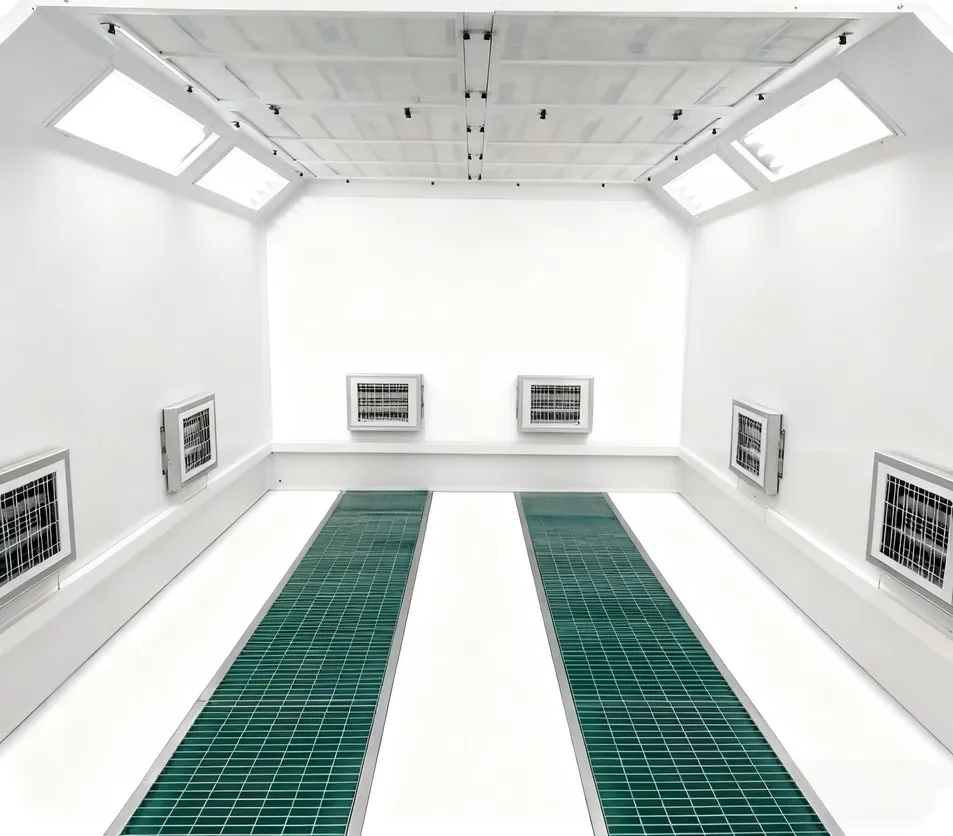

| Overhead Lights | 10 lampshades, each with four 36W tubes. | |
| Side Lights | 10 lampshades, each with two 36W tubes. | |
| Filtration | Top filter | Medium-efficiency filter, class F5 (EN779). |
| Exhaust filter | Fiberglass filter G3 and Activated carbon filter F5. | |
| Air Supply | Motor and Fan | Direct drive 7.5 KW motor; Single-inlet centrifugal fan, 25,000 m³/h. |
| Heating | Burner | Riello RG5S diesel burner, 260,000 Kcal/h. |

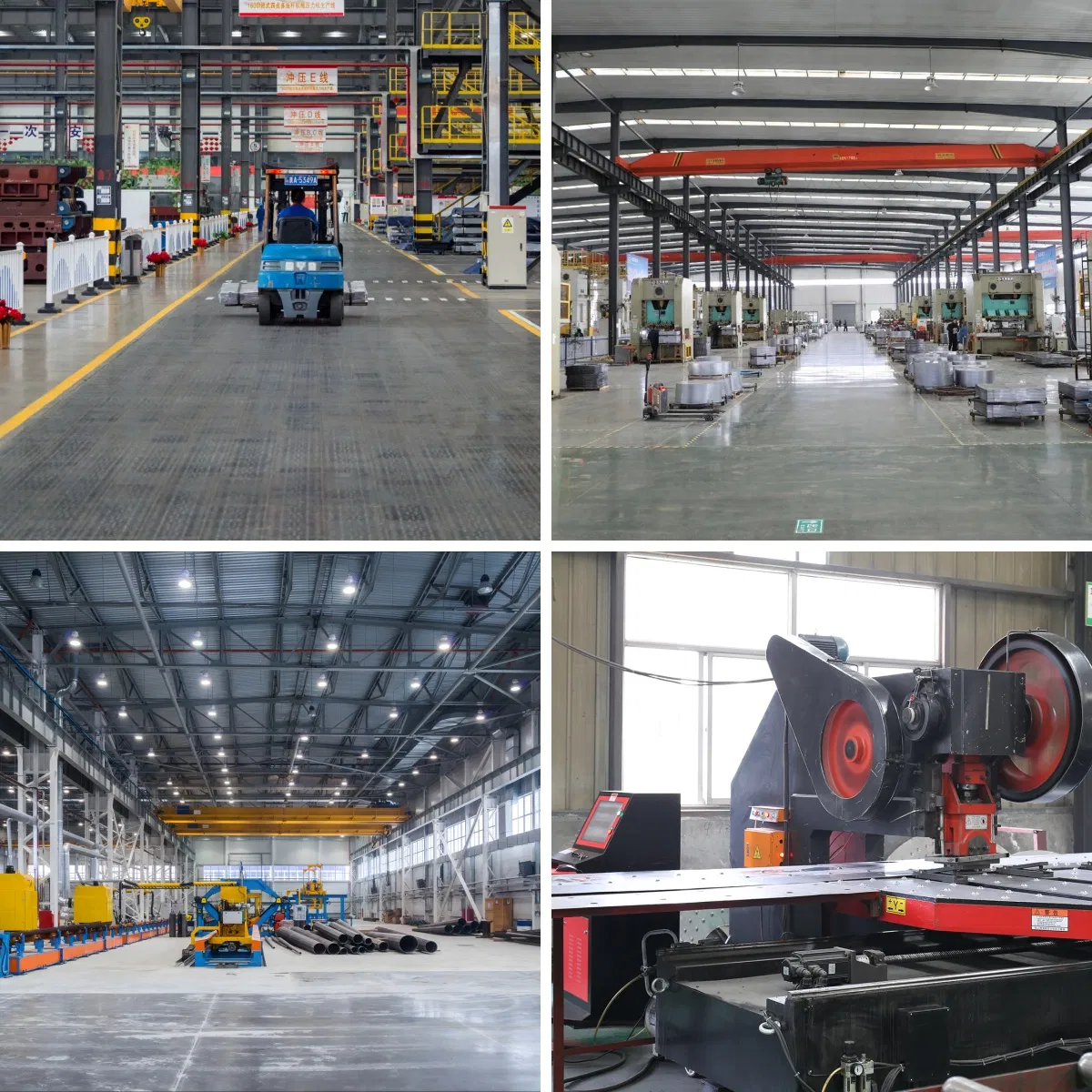

We specialize in manufacturing industrial spray booths, spray painting equipment, and surface treatment systems. With advanced production facilities and a professional R&D team, we provide customized solutions for paint booths, powder coating booths, and other industrial equipment. Our products are widely used in industries such as automotive, furniture, electronics, metal, and coatings, helping companies achieve high-quality finishing while ensuring a safe and environmentally friendly work environment.
