A refrigerated truck, or reefer truck, is a specialized vehicle designed for transporting perishable goods that require a specific temperature to maintain their quality during transit. These trucks are integral to the logistics industry, enabling businesses to transport temperature-sensitive goods over long distances while ensuring freshness and quality upon arrival.

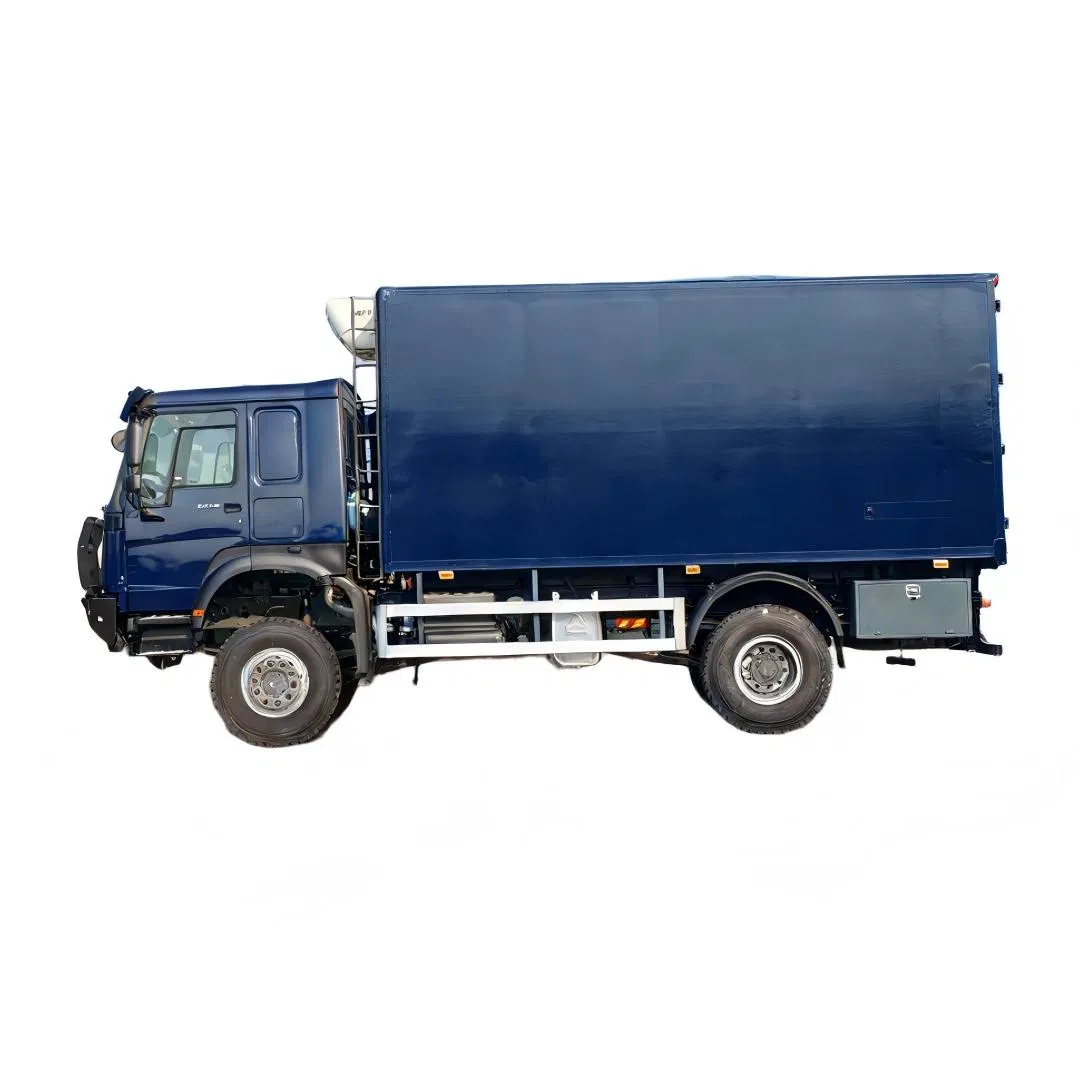

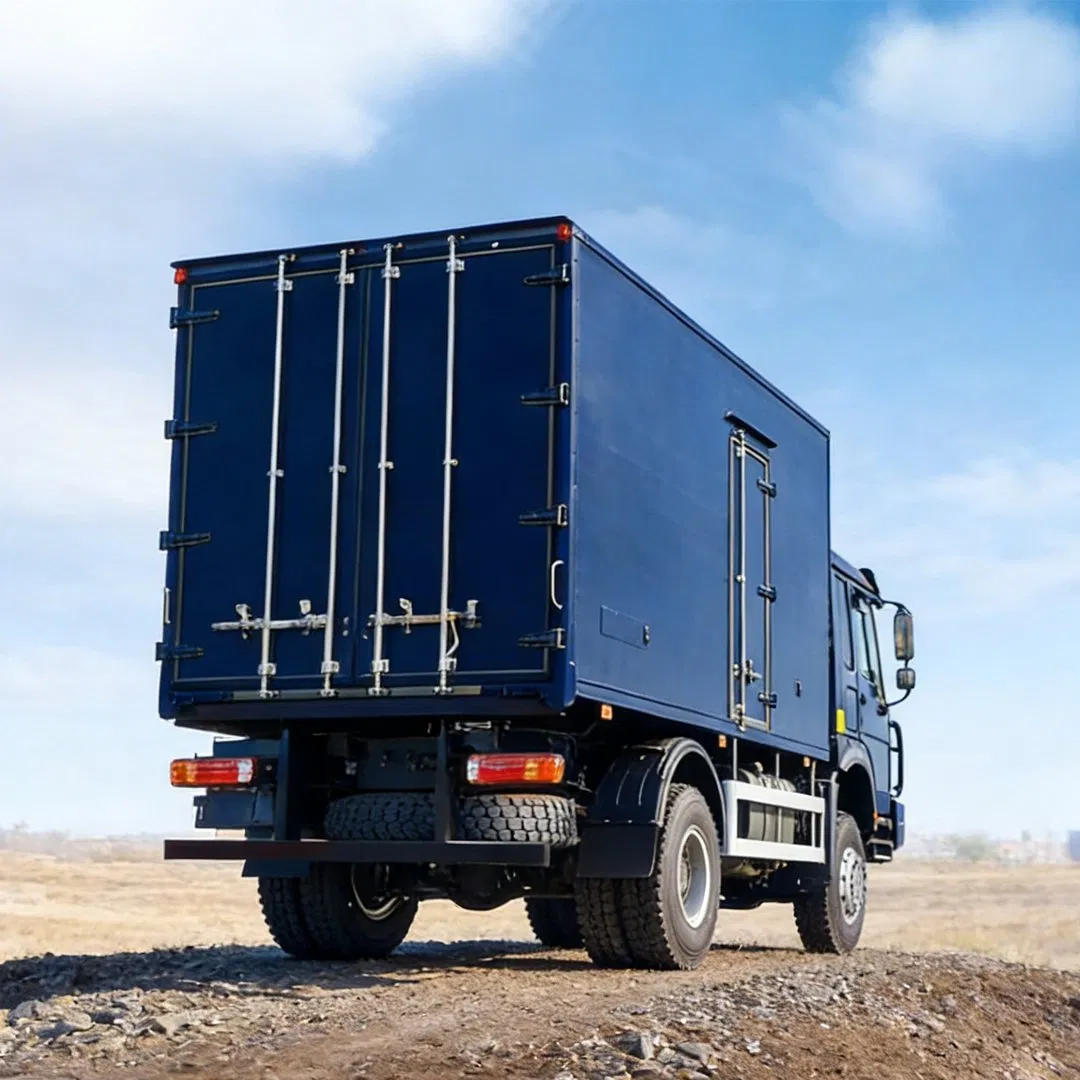

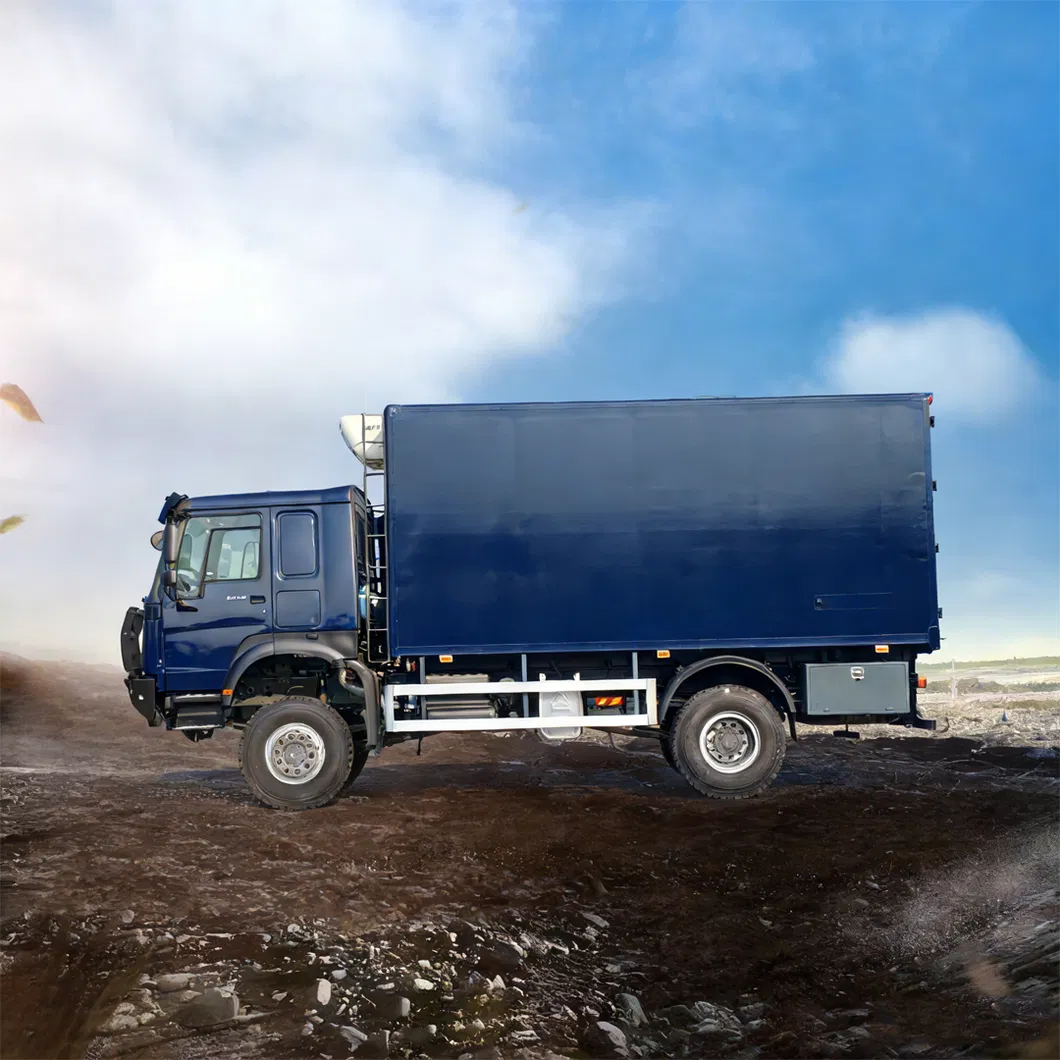

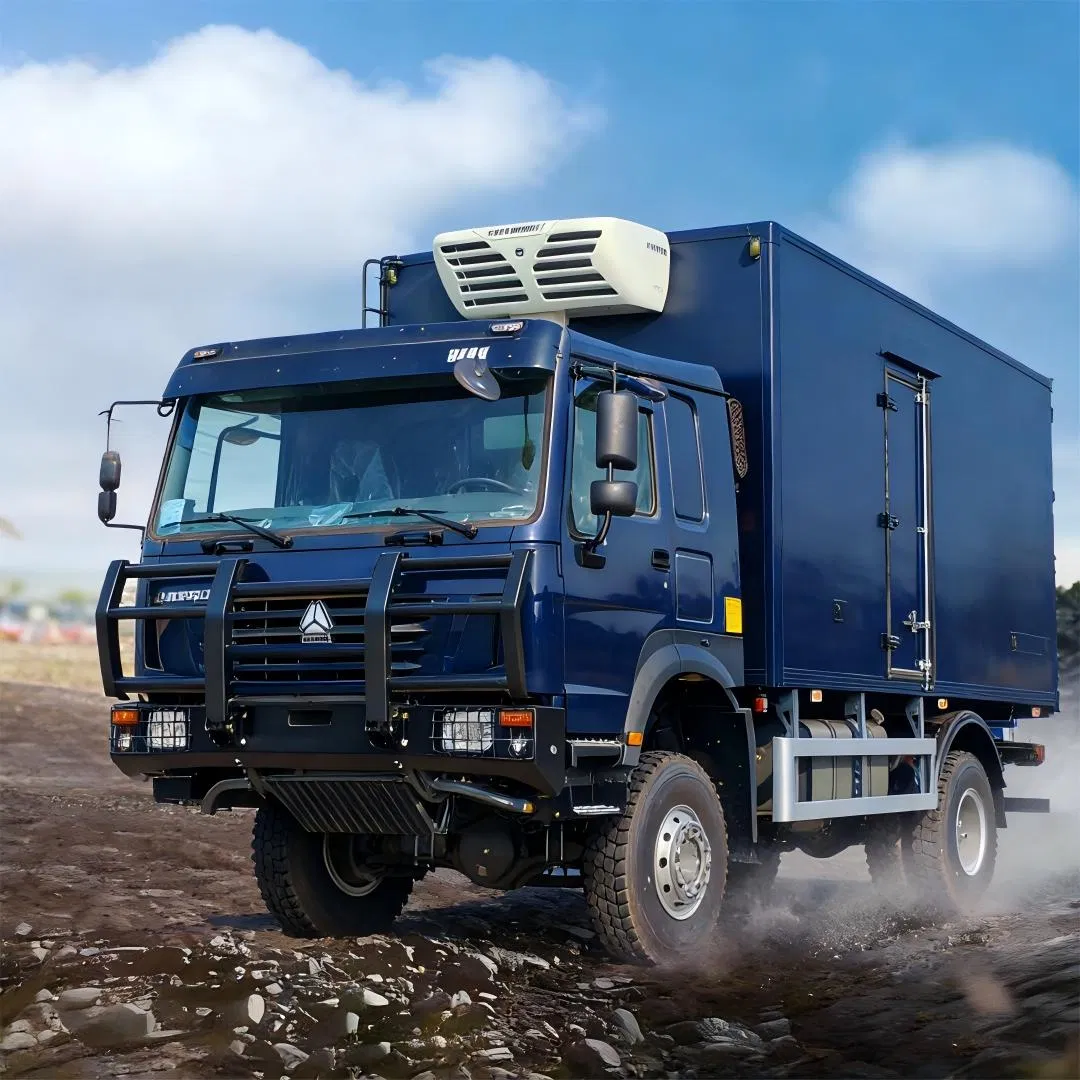

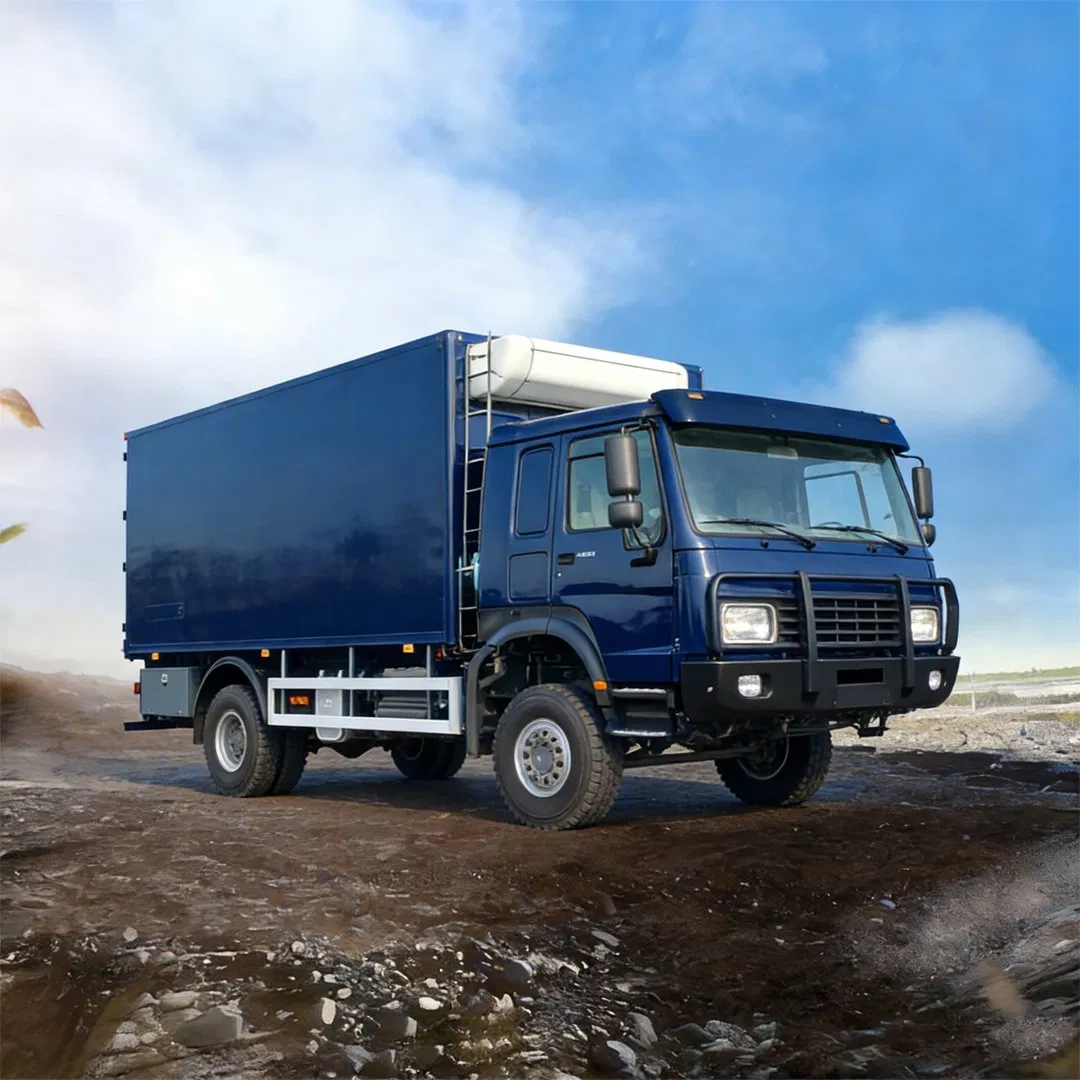

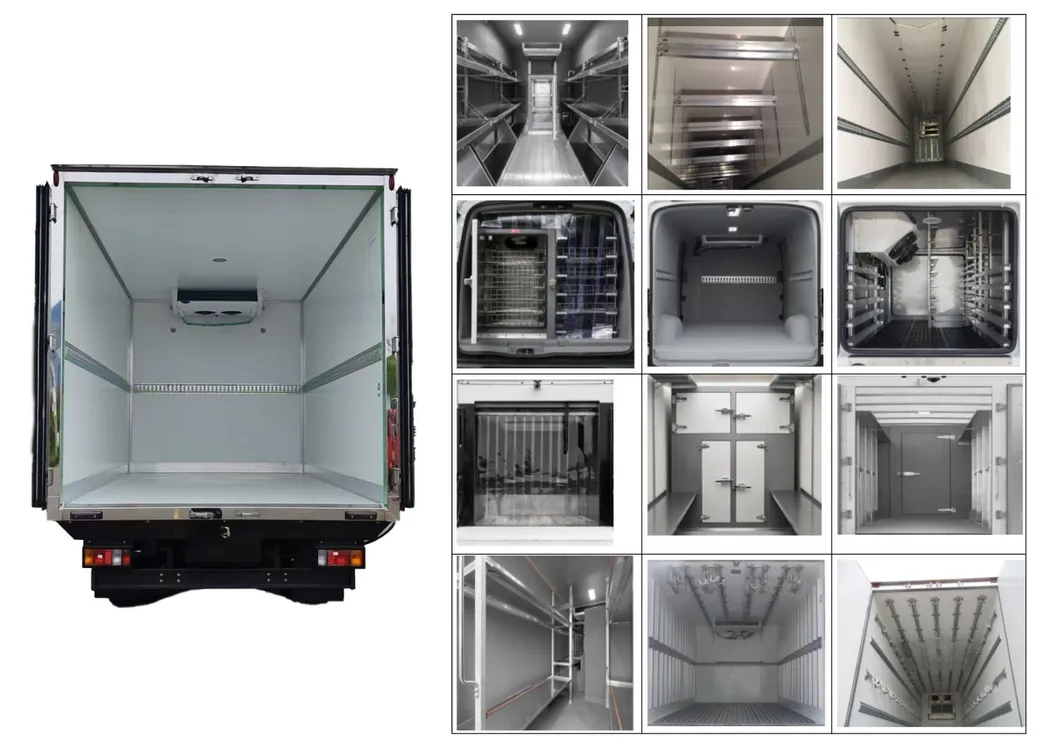

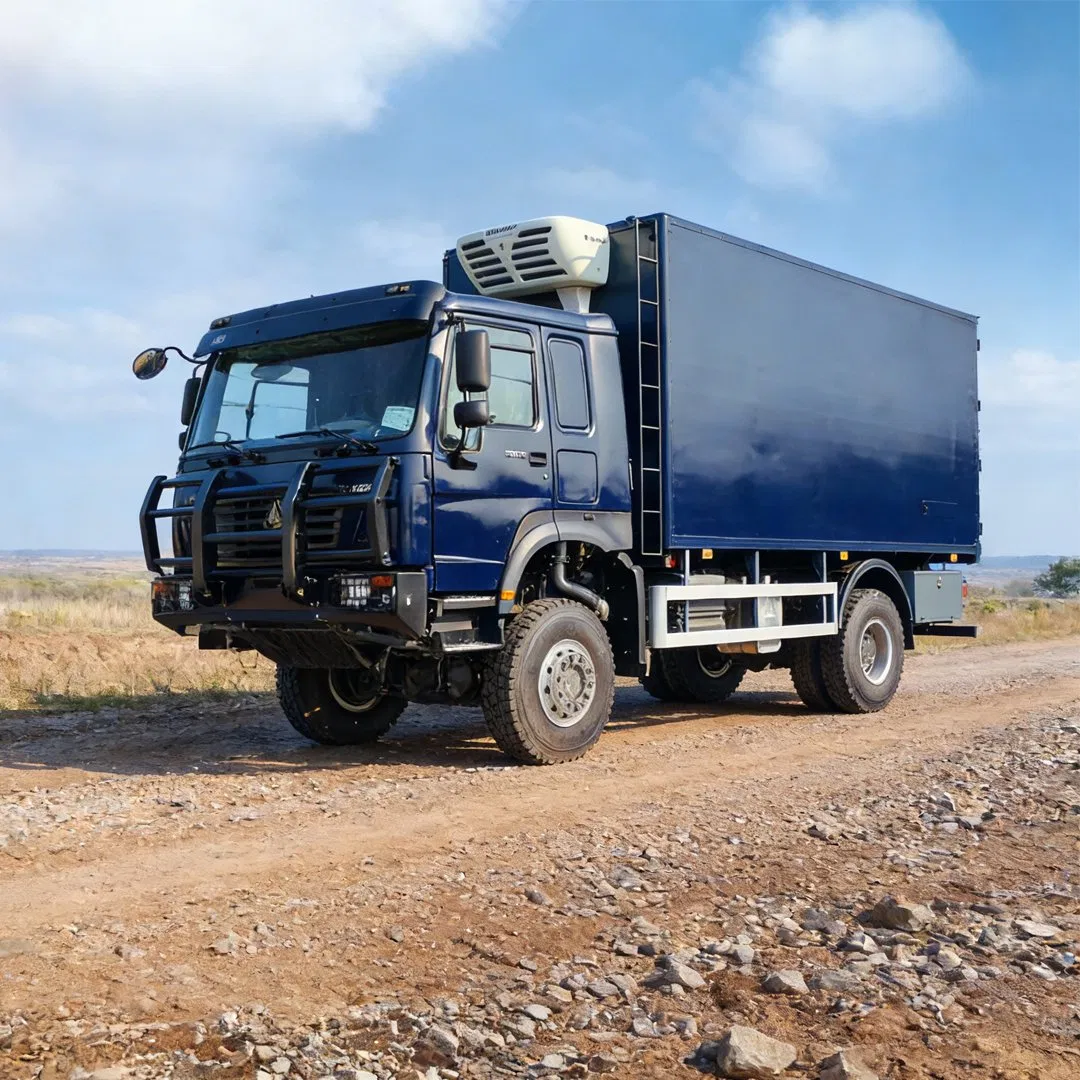

The 4x4 Off-Road All-Terrain Refrigerated Truck is designed for the transportation of frozen food, dairy products, vaccines, and fresh produce. With a storage capacity ranging from 10 to 25 cubic meters, it utilizes advanced cooling systems to maintain sub-zero temperatures even in challenging environments. The interior is optimized for maximum space utilization and easy loading/unloading.
| Technical Specifications | |
|---|---|
| Overall Dimensions | 8500x2370x2760 (mm) |
| Van Size | 7000x2500x2100 (mm) |
| GVW | 16000kg |
| Max Payload | 10700kg |
| Engine Model | ISDe210 30 (210hp) |
| Emission Level | Euro 3 |
| Transmission | 6 Forward Gears + 1 Reverse |
| Tire Specification | 11R22.5 (6+1 units) |

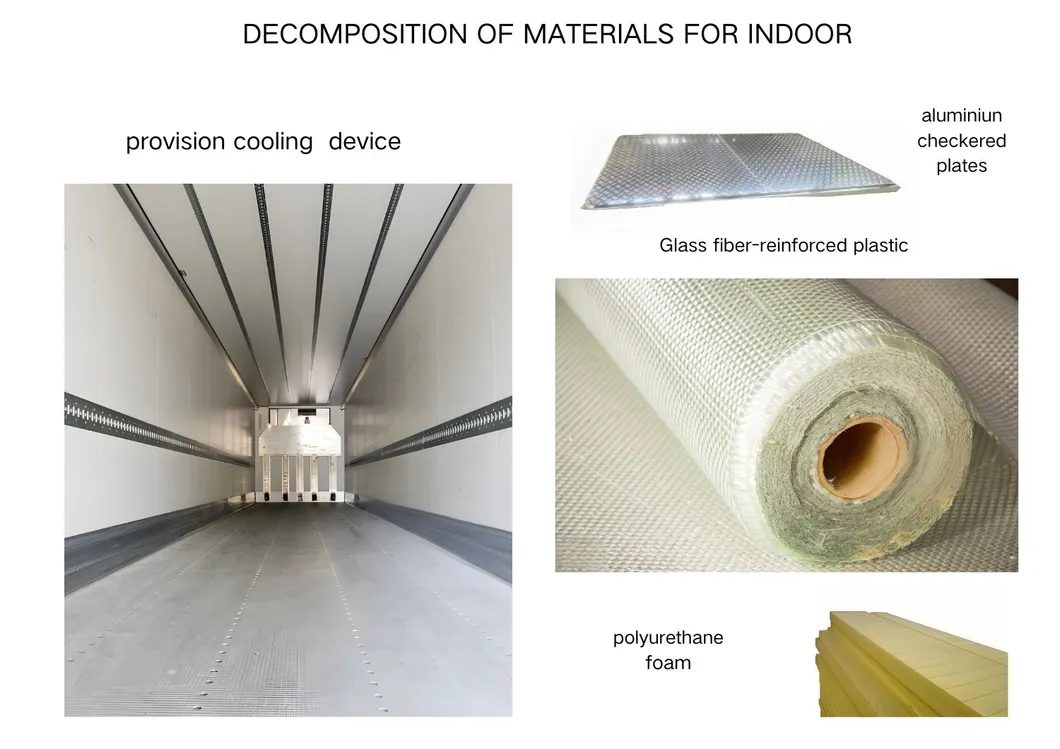

| Van Material | Fiberglass (Inner & Outer) with Polyurethane foam |
| Cooling Brand | Carrier / Thermo King or equivalent |
| Lowest Temp | -16°C |
Design drawings → Sub-frame welding → Box frame installation → Insulation plate assembly → Internal functional assembly → External structure installation → Sanding & Rust removal → Painting → Linkage debugging → Load testing → Delivery.

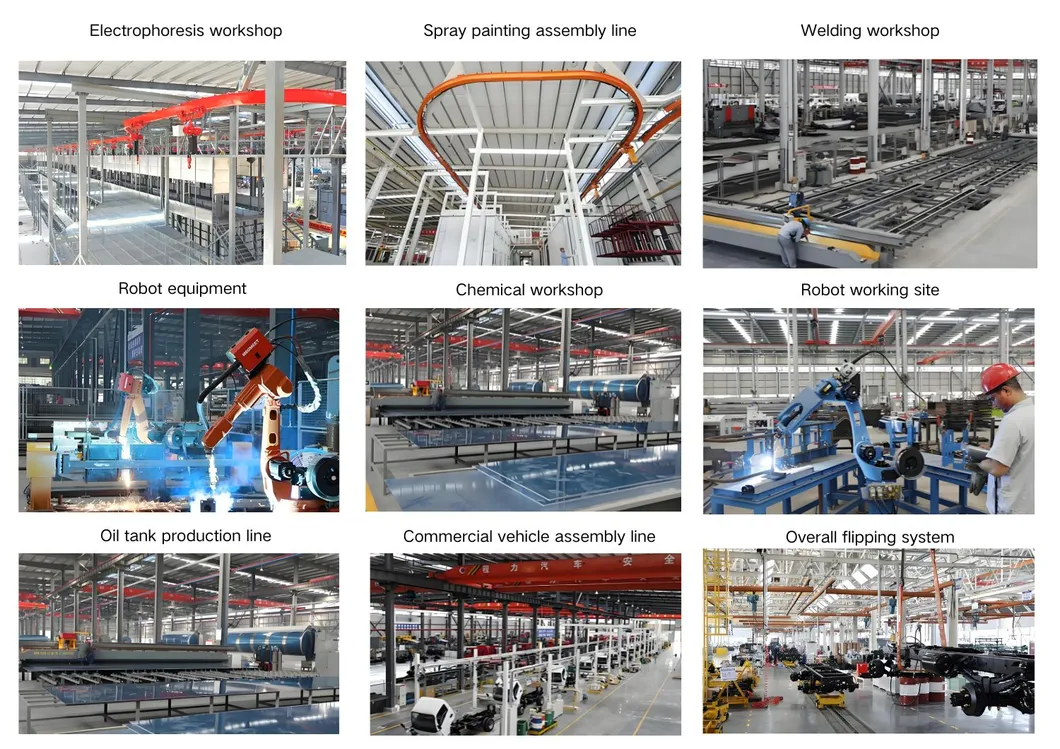

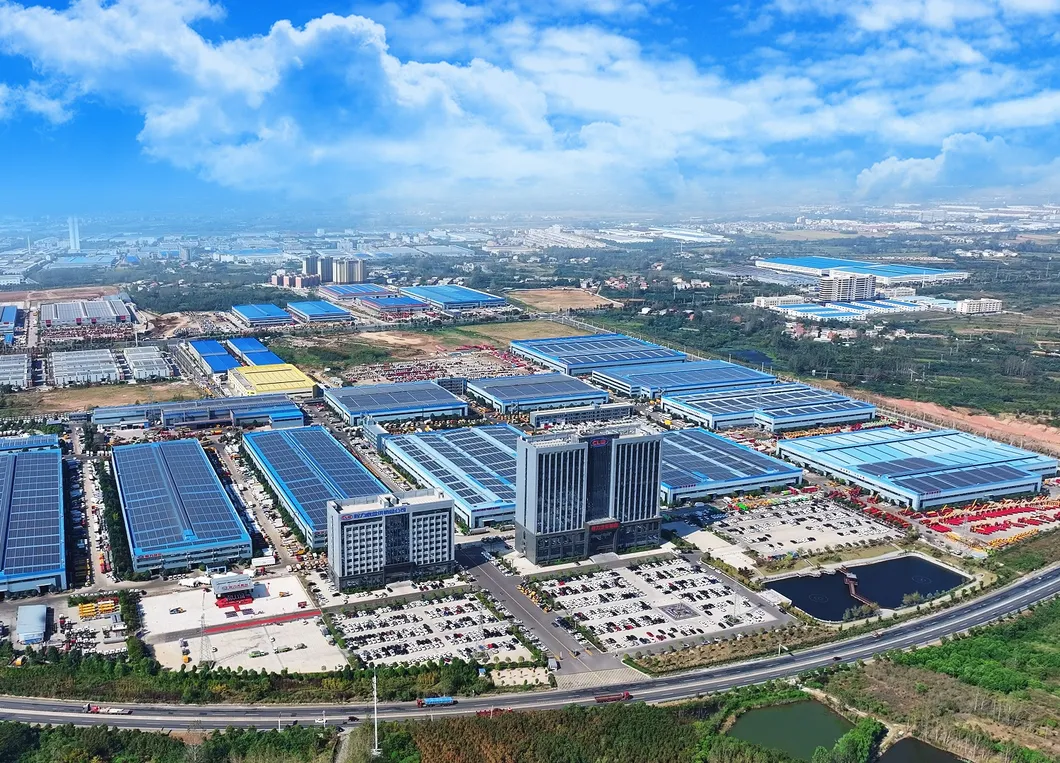

With over 20 years of experience since 2005, our manufacturing facility integrates design, R&D, and production. We maintain professional electrophoresis workshops and dedicated testing sites for all special-purpose vehicles to ensure high-quality output and reliable performance.
