Geely Super Van 6/7 Setas Electric Luxury Van Electric Mini Bus

After-sales Service: 2 Years
Warranty: 6 Months
Voltage: 72V

Product Description

Basic Specifications

ModelSuper Van
Power TypeBEV (Battery Electric Vehicle)
Seating Capacity6 / 7 Seats
CertificationCCC
Motor PerformancePure Electric 272 HP
Pure Electric Range340 - 430 Km
Battery Capacity66 / 68 / 83 Kwh
Dimensions (mm)5490 * 1980 * (1980/2180/2500)
ChargingFast Charging Supported (Slow Optional)
OriginChina

Product Gallery

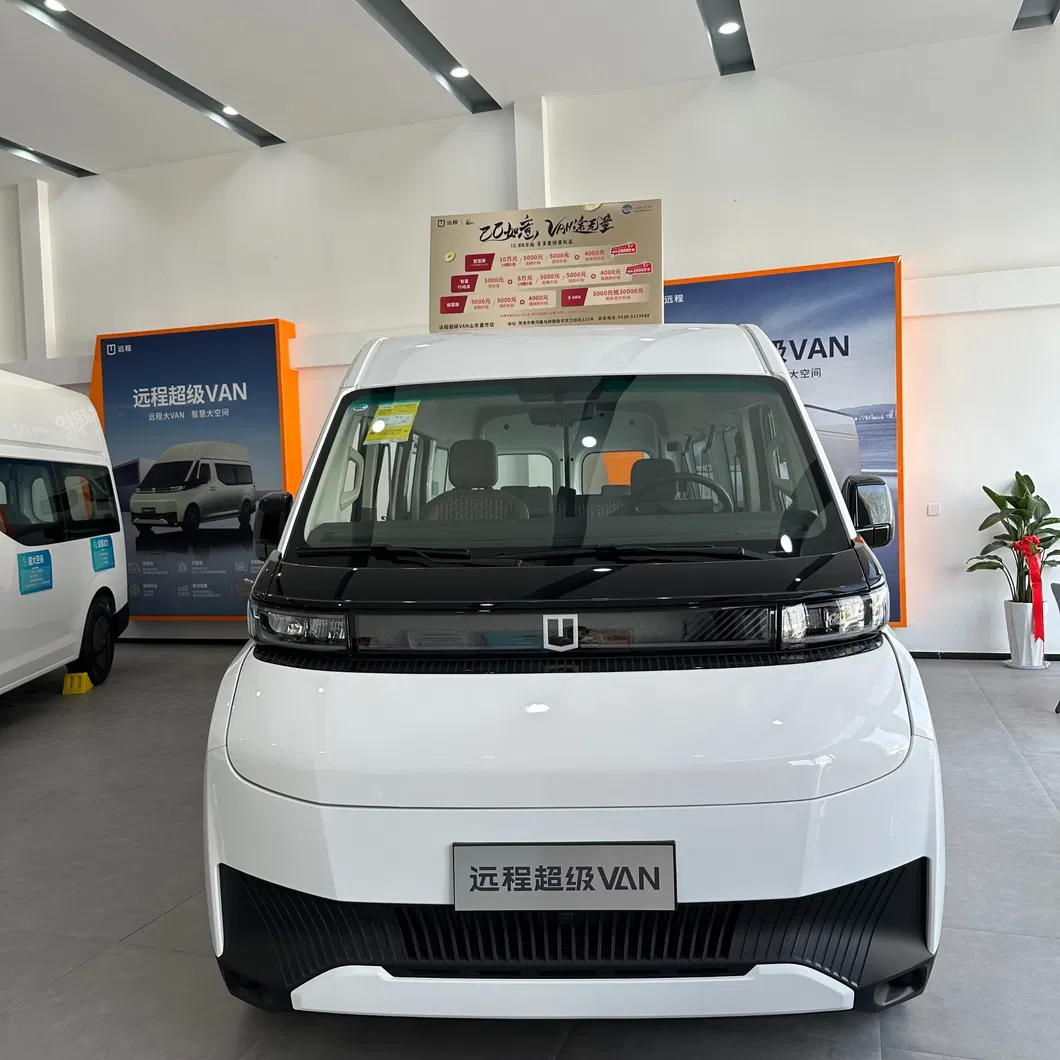

Electric Luxury Van Front View

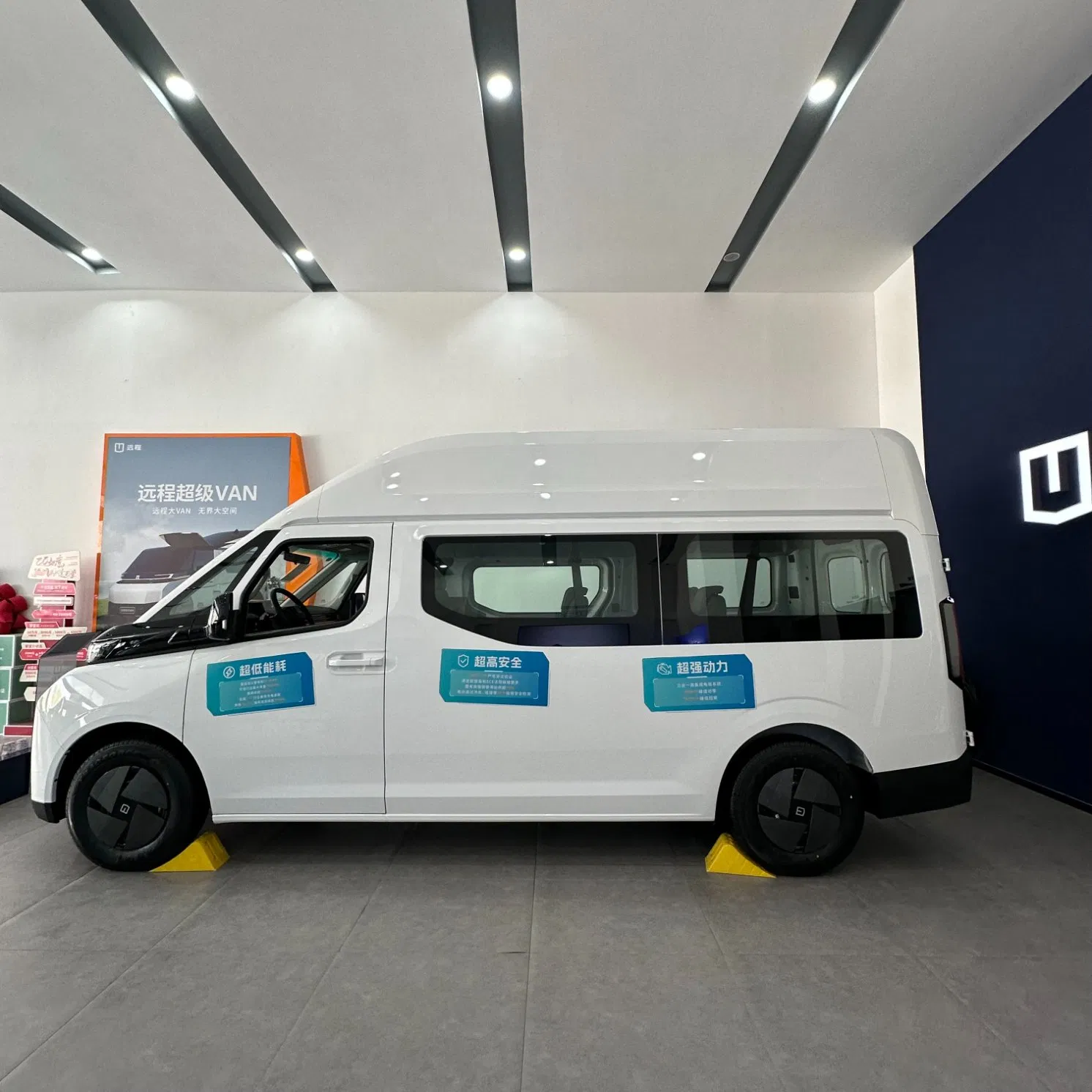

Electric Luxury Van Side View

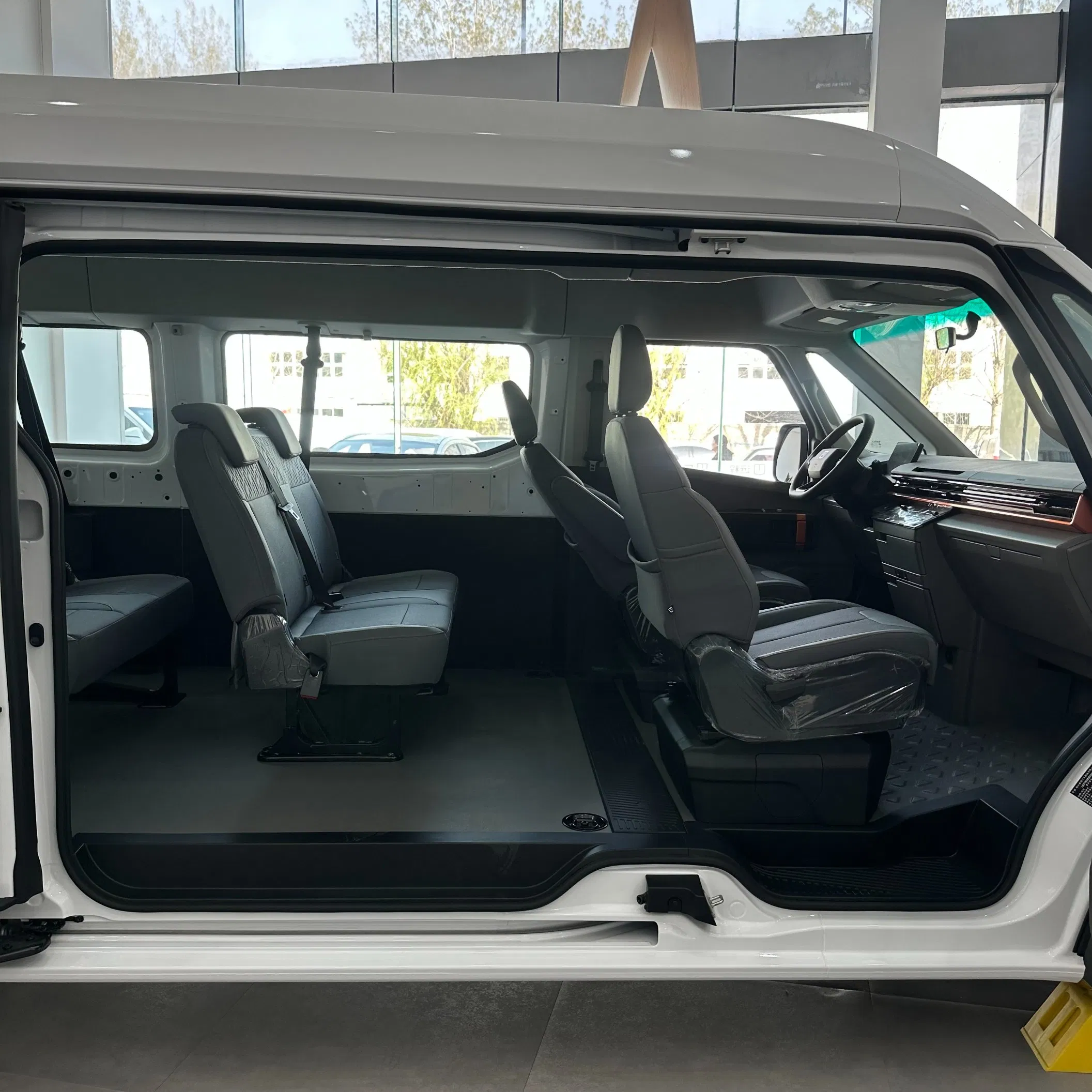

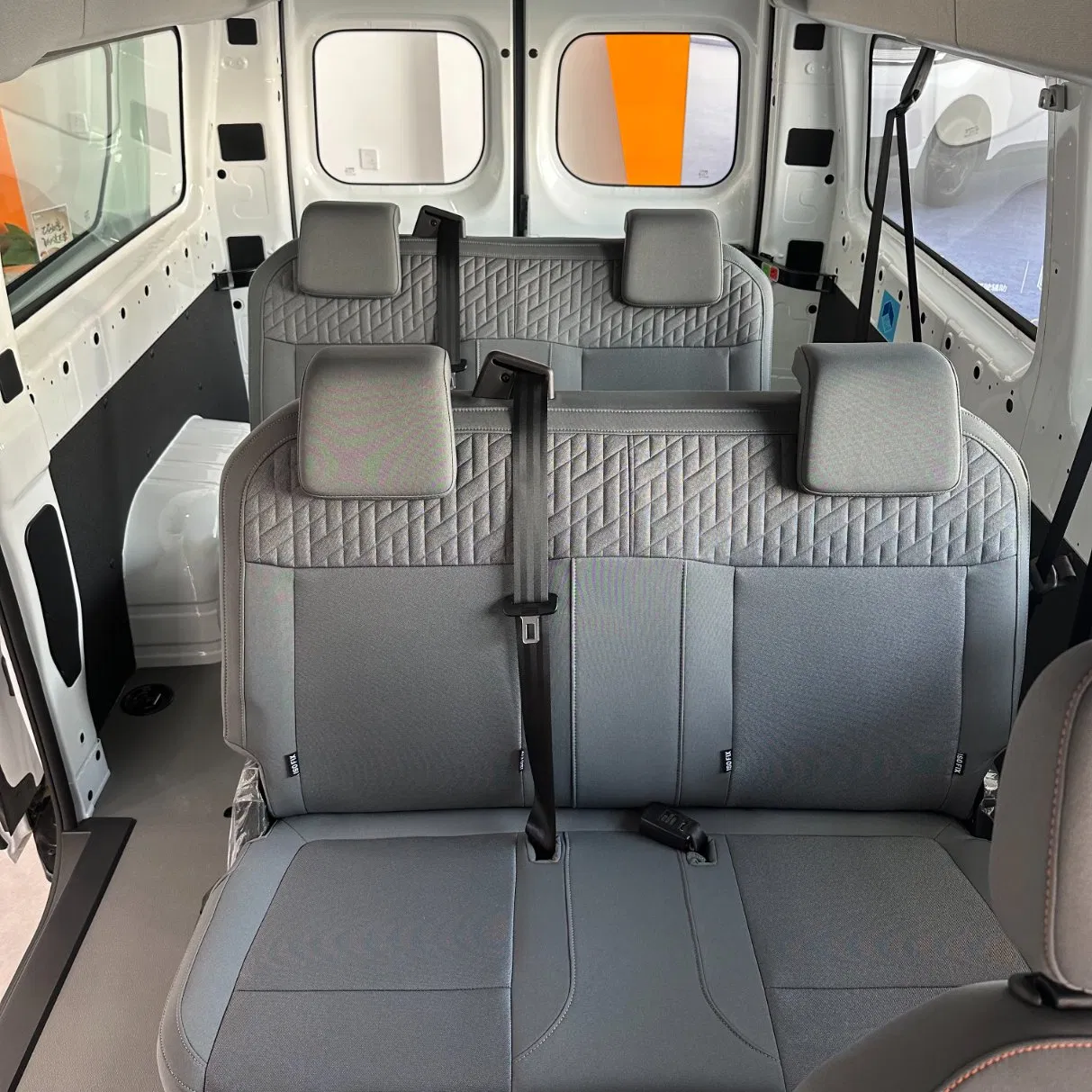

Electric Luxury Van Interior

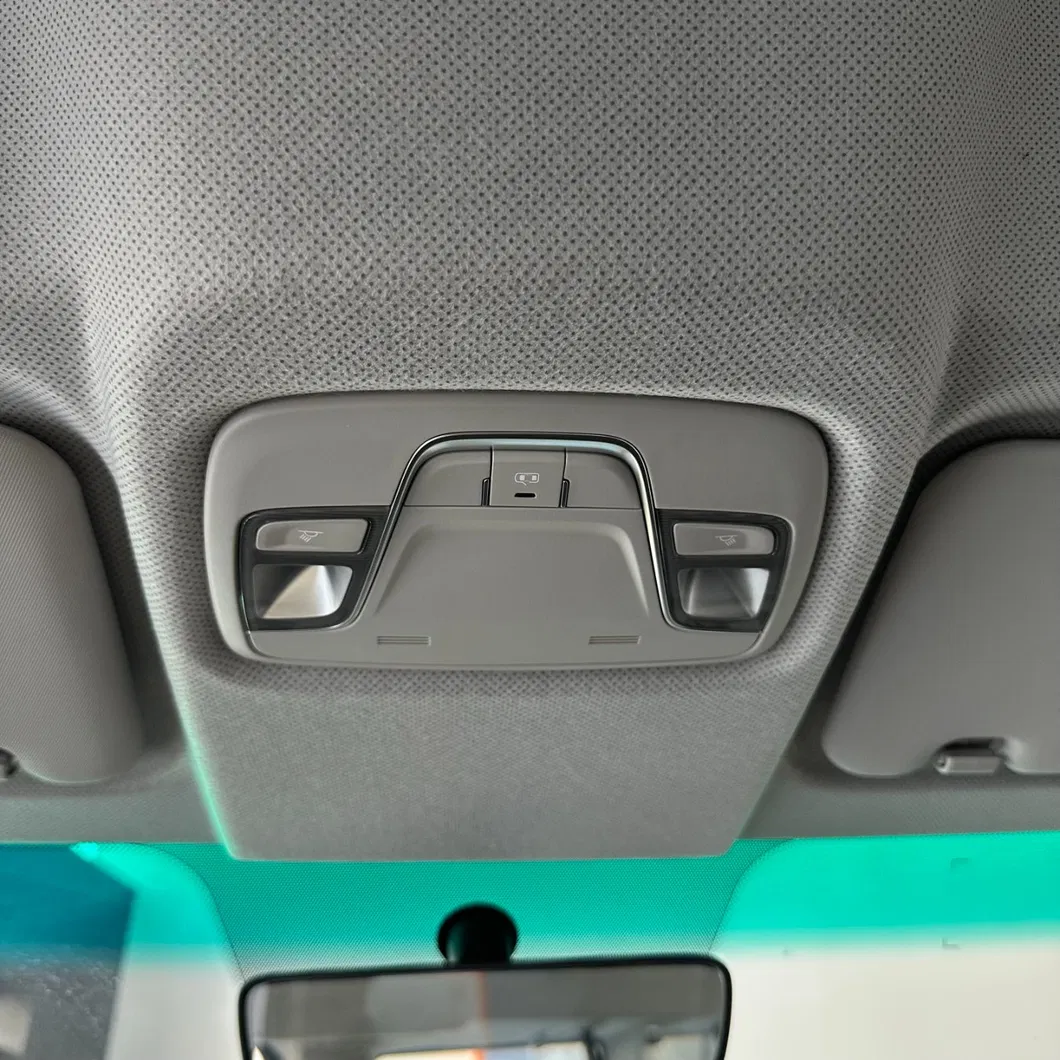

Electric Luxury Van Detailed View
Electric Luxury Van Rear View

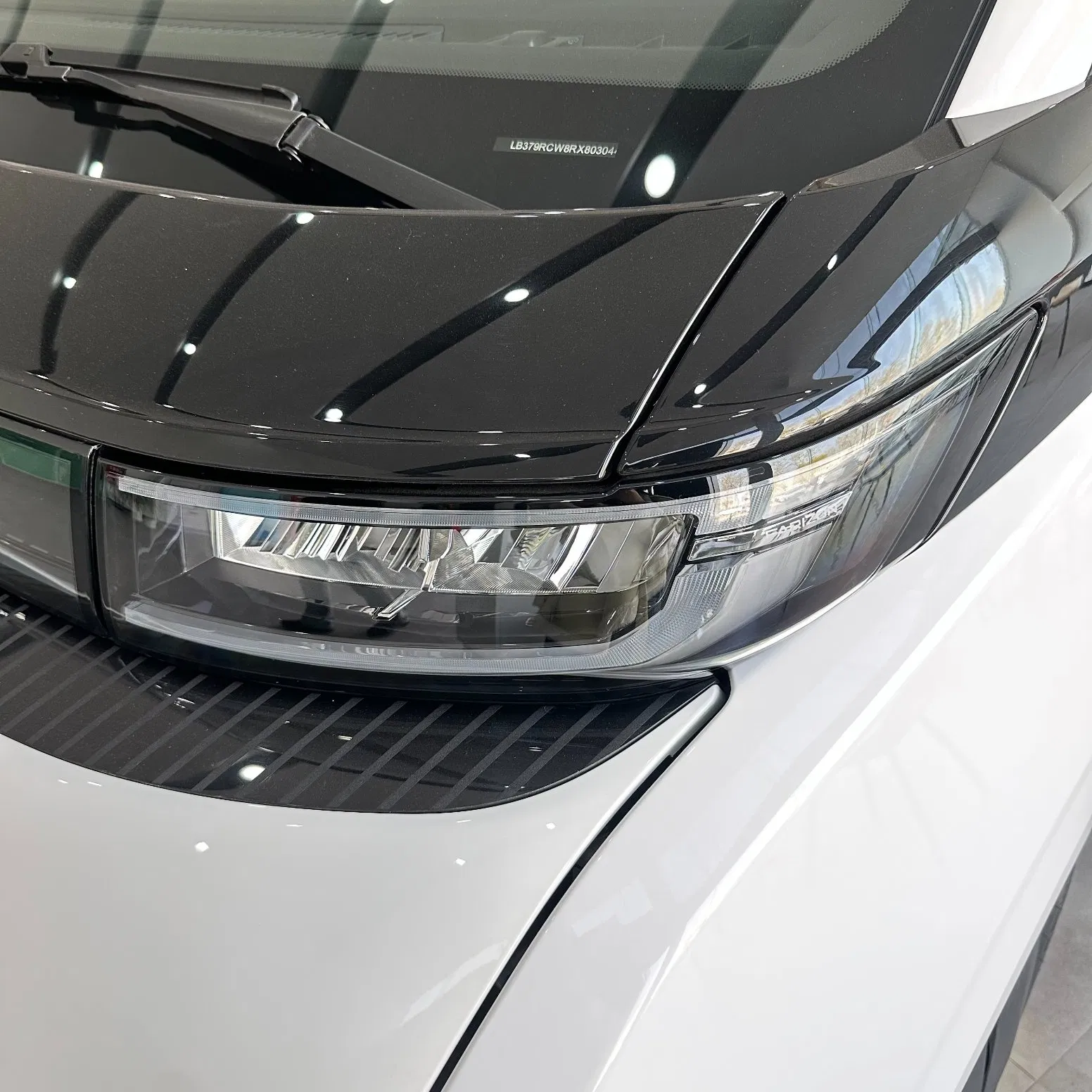

Electric Luxury Van Lighting

Product Overview

The Super VAN represents a paradigm shift in urban and intercity passenger transportation. Designed as a groundbreaking pure electric light commercial vehicle, it combines cutting-edge technology, modular architecture, and innovative design to deliver a versatile, eco-friendly, and intelligent solution for modern transit demands.

1. Platform and Architecture

Built on the GXA-M Skateboard Chassis, this modular architecture optimizes the electric vehicle layout by integrating the battery, motor, and electronic control systems into a flat, low-floor structure. This maximizes interior space while ensuring superior stability and safety. The vehicle achieves a 5.8-meter minimum turning radius and a 0.29Cd drag coefficient for optimal efficiency.

2. Design and Dimensions

Exterior Innovation

  • B-Pillar-Free Side Doors: A 2.1-meter-wide side opening facilitates effortless boarding.
  • 270-Degree Rear Doors: Versatile access for luggage and equipment.
  • Variable Roof Heights: Available in 1980mm, 2180mm, and 2500mm configurations.

3. Interior and Smart Features

The cabin supports multiple seating configurations (6, 7, or 9 seats) with modular seat tracks for rapid reconfiguration. Technology highlights include a 12.3-inch central touchscreen with 5G connectivity and a fully digital cockpit.

Advanced Safety (ADAS)

  • ACC Adaptive Cruise Control
  • 360-Degree Panoramic Imaging
  • Advanced Driver Distraction Warning (ADDW)
  • ICC Integrated Cruise Assistance

4. Powertrain and Performance

Powered by a high-efficiency 200kW electric motor delivering 343N·m of torque. The CTP-S battery technology provides a maximum range of up to 560km (CLTC). Ultra-fast charging allows 300km of range replenishment in just 20 minutes.

5. Specialized Applications

The Super VAN is engineered for global markets, targeting urban shuttles, luxury tourism transfers, corporate mobility, and specialized customization such as mobile clinics or VIP transport via the X-VAN program.

Frequently Asked Questions

Q1: What is the maximum driving range on a single charge? A1: Depending on the battery configuration (80kWh or 106kWh), the vehicle offers a range between 340km and 560km under CLTC conditions.
Q2: How fast does the battery charge? A2: With DC fast charging, you can replenish approximately 300km of range in just 20 minutes.
Q3: What are the available seating configurations? A3: The Super VAN offers flexible layouts including 6-seat (2+2+2), 7-seat (3+2+2), and 9-seat (3+2+2+2) arrangements.
Q4: Is the vehicle suitable for narrow city streets? A4: Yes, despite its size, it features a 5.8-meter minimum turning radius, making it highly maneuverable in congested urban environments.
Q5: What safety features are included? A5: It is equipped with over 30 Advanced Driver Assistance Systems (ADAS), including 360-degree cameras, adaptive cruise control, and fatigue monitoring.
Q6: Can the vehicle power external devices? A6: Yes, it supports 3.3kW V2L (Vehicle-to-Load) for external devices and a 10kW Onboard Power Take-Off (PTO) for specialized equipment.
