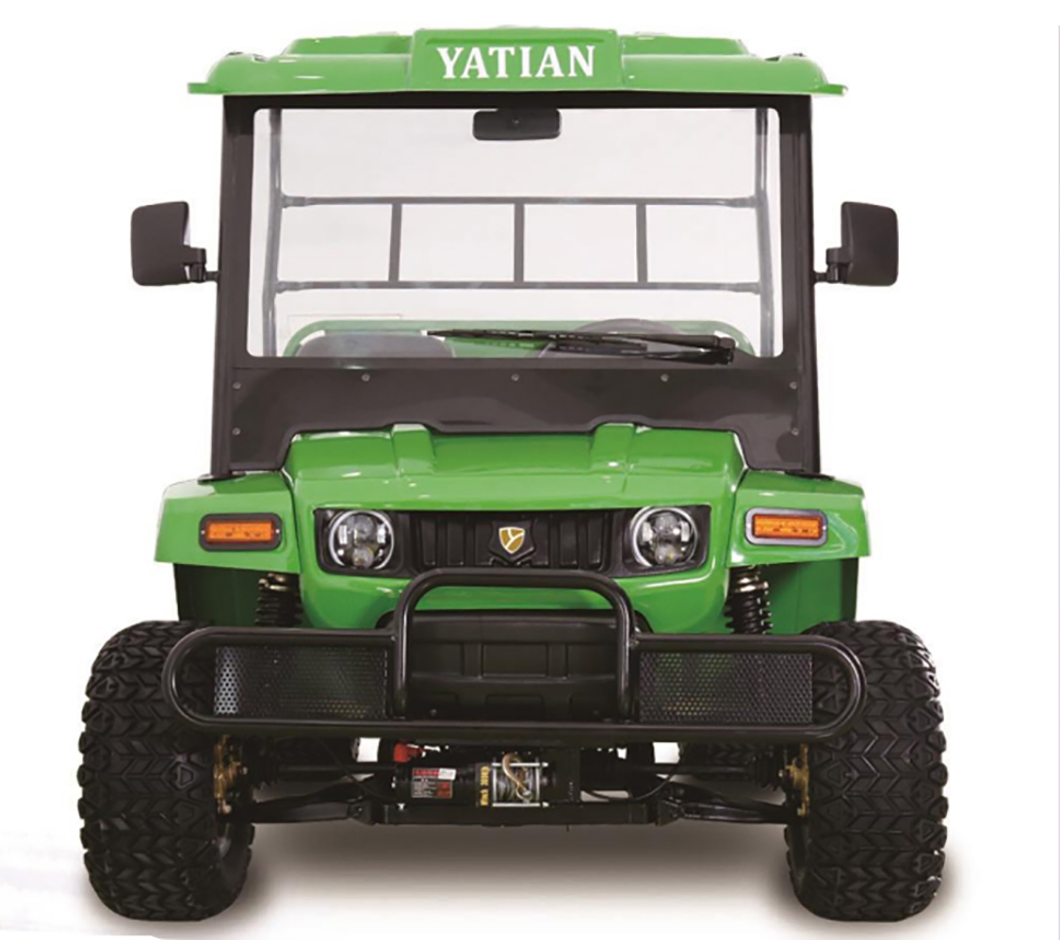

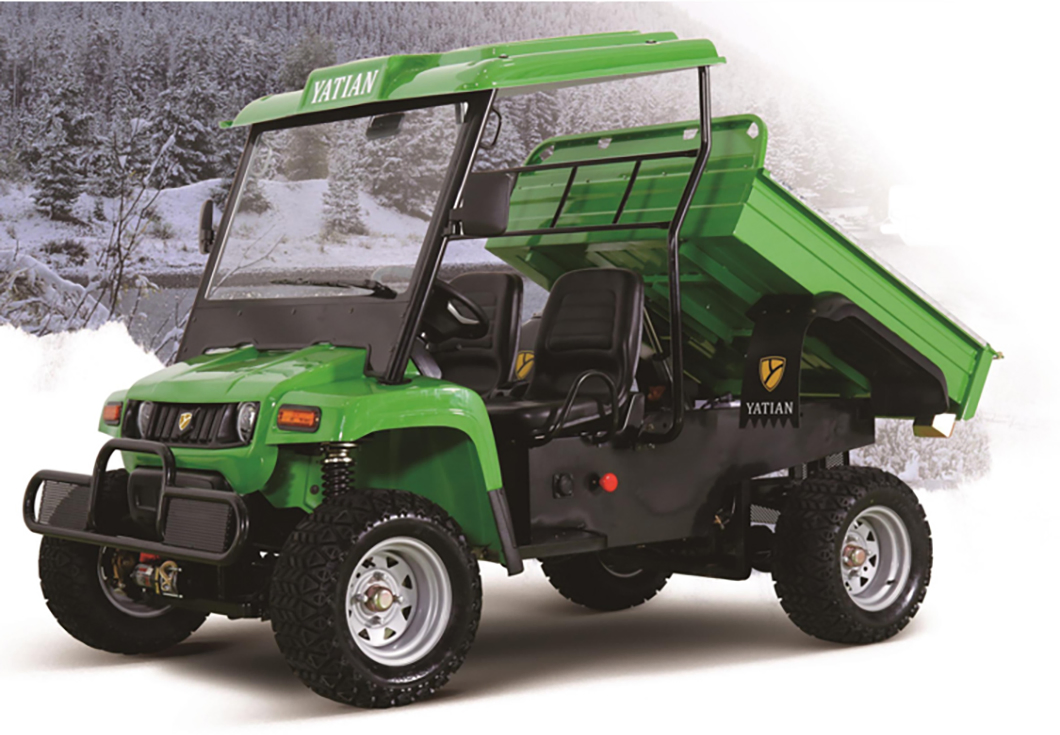

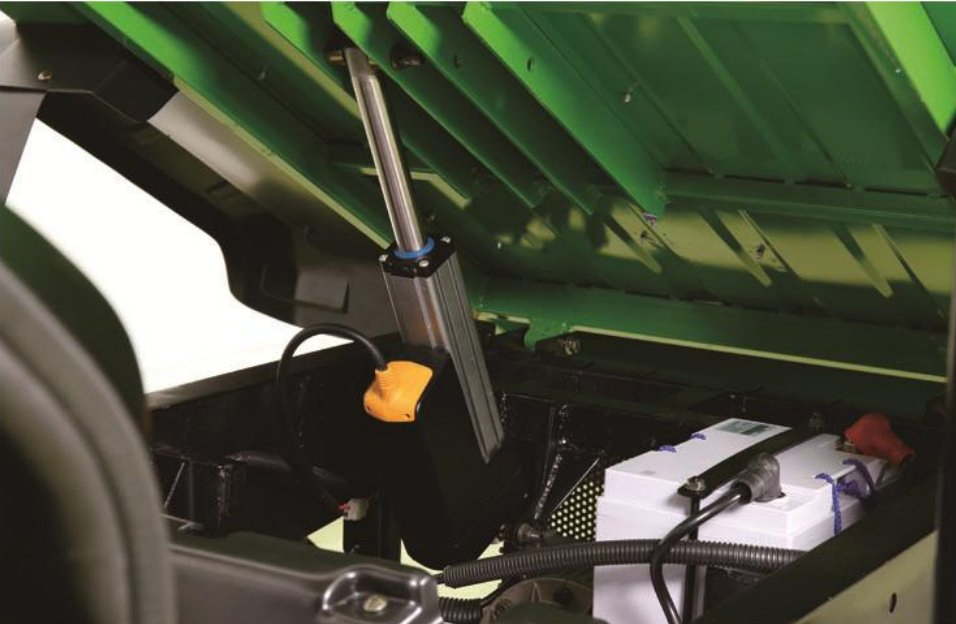

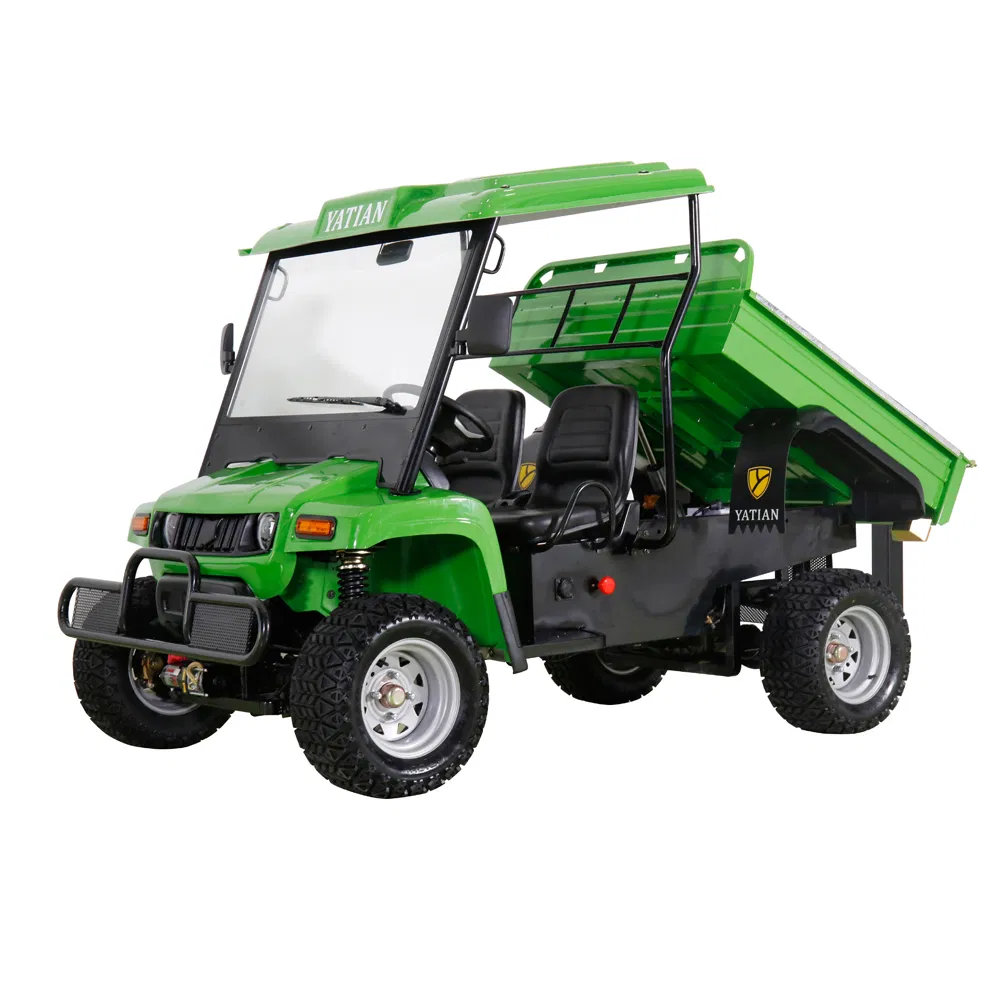

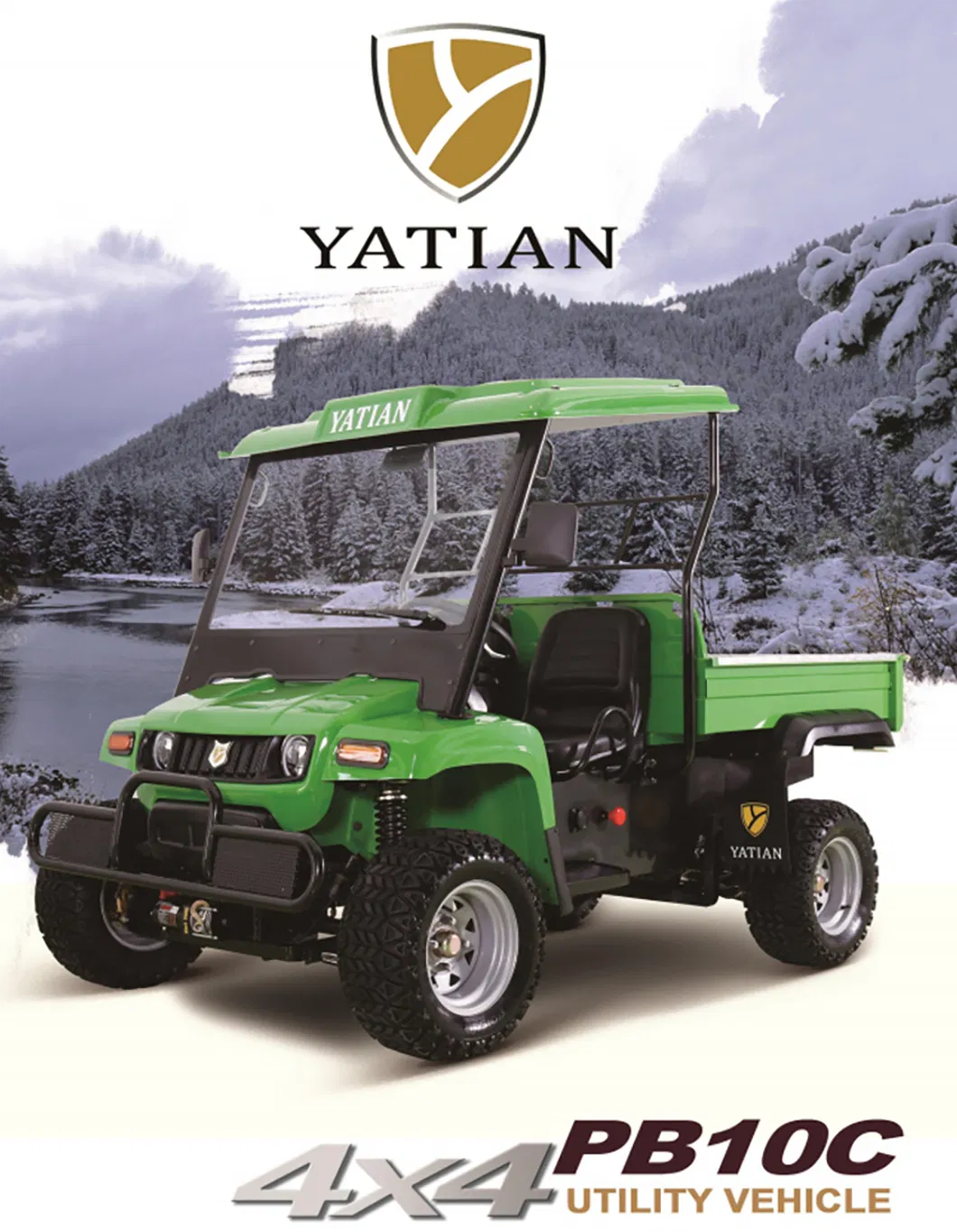

4X4 Electric UTV: This multi-functional all-terrain off-road 4WD electric vehicle is designed for versatility in farms, parks, and outdoor environments. It features an electric tipping cargo box, a front electric winch, and a multi-functional rear trailer hitch for towing equipment.
Powered by a 72V / 10kW system and a 4WD system with a differential lock, it delivers exceptional off-road performance. This 2-seat vehicle handles a 1000kg load capacity and can tow up to 3000kg. Options include lithium battery upgrades and custom colors.
| System / Part | Specifications | |
|---|---|---|
| Electrical System | ||
| Motor | 72V 10KW permanent magnet synchronous motor | |
| Battery | 9*8V Deep cycle traction battery or Lithium battery | |
| Charger | Automatic high-frequency pulse (110V/220V Input) | |
| Controller | CMOS CVT with automatic anti-slip & downhill speed limit | |
| Mechanical & Chassis | ||
| Frame | High-strength steel structure, hot sprayed zinc coating | |

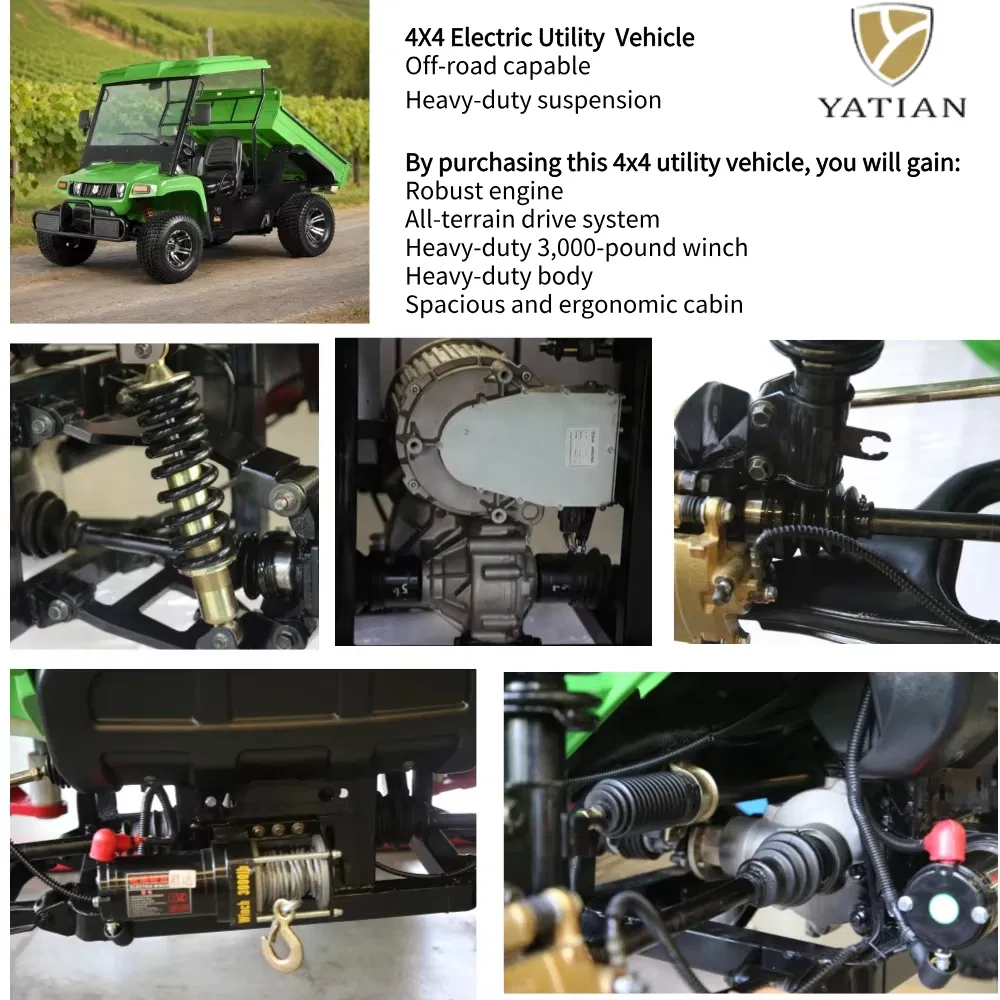

| 4x4 System | Switchable RWD, 4WD, and 4WD with front differential lock | |
| Brake System | Dual circuit hydraulic (Front Disc / Rear Drum) | |
| Suspension | Front: Single A-arm spiral spring; Rear: Multi-leaf spring with hydraulic shock absorber | |
| Dimensions & Performance | ||
| L×W×H | 2880×1590×1940mm | Ground Clearance: 190mm |
| Wheelbase | Front: 1330mm / Rear: 1180mm | Axle Distance: 1920mm |
| Turning Radius | 3700mm | Braking Distance: ≤5m |
